SEM 676F

  • Key Specification
  • Advantage
  • Application
    • Rated Load: 7,100 (for Std. Linkage) kg
    • Operating Weight with Standard Bucket: 23,350kg
    • Bucket Capacity: 4.2-6.5m³
    • Easy To Operate
    • Low Cost Per Hour
    • Proven Reliability
    • Service Convenience
    • Safety
    • Railway / Highway / Airport
    • Port
    • Quarry
    • Municipal Construction
    • Agriculture
    • Water Conservancy / Hydropower
    • Waste
    • Coal
    • Forestry
    • Log Grapple
    • Concrete
    • Iron & Steel
Inquiry Download Brochure
  • Feature
  • Specification
  • Video
  • Photo
  • Download Brochure
Model
ModelSEM 676F
Main Specifications
Rated Load7,100 (for Std. Linkage)kg
Operating Weight with Standard Bucket23,350kg
Bucket Capacity4.2-6.5m³
Wheel Base3,550mm
Overall Dimension9,012* 3,259*3,529mm
Max. Drawbar Force215kN
Breakout Force215kN
Dump Clearance3,250mm
B-Pin Height4,411 (for Std. Linkage)mm
Transmission
Transmission TypeEH countershaft. power shift
Transmission GearsF4/R3
Torque Converter TypeSingle stage, 3 elements
Forward I/Reverse I7.1/7.1km/h
Forward II/Reverse II12.7/12.7km/h
Forward III/Reverse III23.8/23.8km/h
Forward IV39km/h
Maker & TypeSEM TR240
Axle (Axle, Tire & Brakes)
Main Drive TypeSpiral bevel gear, single stage
Final Drive Reduction TypePlanetary type, single stage
Rear- oscillation +/-±11°
Engine
Engine ModelWP10G270
Rated Power199kW
Rated Speed2,200r/min
Displacement9.7L
Implement Hydraulic System
Implement System TypeOpen center filow sharing
Boom Raise Time5.7s
Hydraulic Cycle Time9.8s
System Pressure Setting24MPa
Brake System
Service BrakeDry & caliper, air to oil control
Parking BrakeDrum/Shoe
Steering System
System TypeLoad sensing
Steering Pump TypePiston pump
System Pressure Setting20MPa
Steering Angle (L/R)35±1°
Tires
Size26.5-25
TypeBias
Layer24
Textured TypeL-3
SEM 676F Wheel Loader Promotion Video
SEM 676F Wheel Loader Walk Around Video
SEM_PRODUCTS_SEM618D

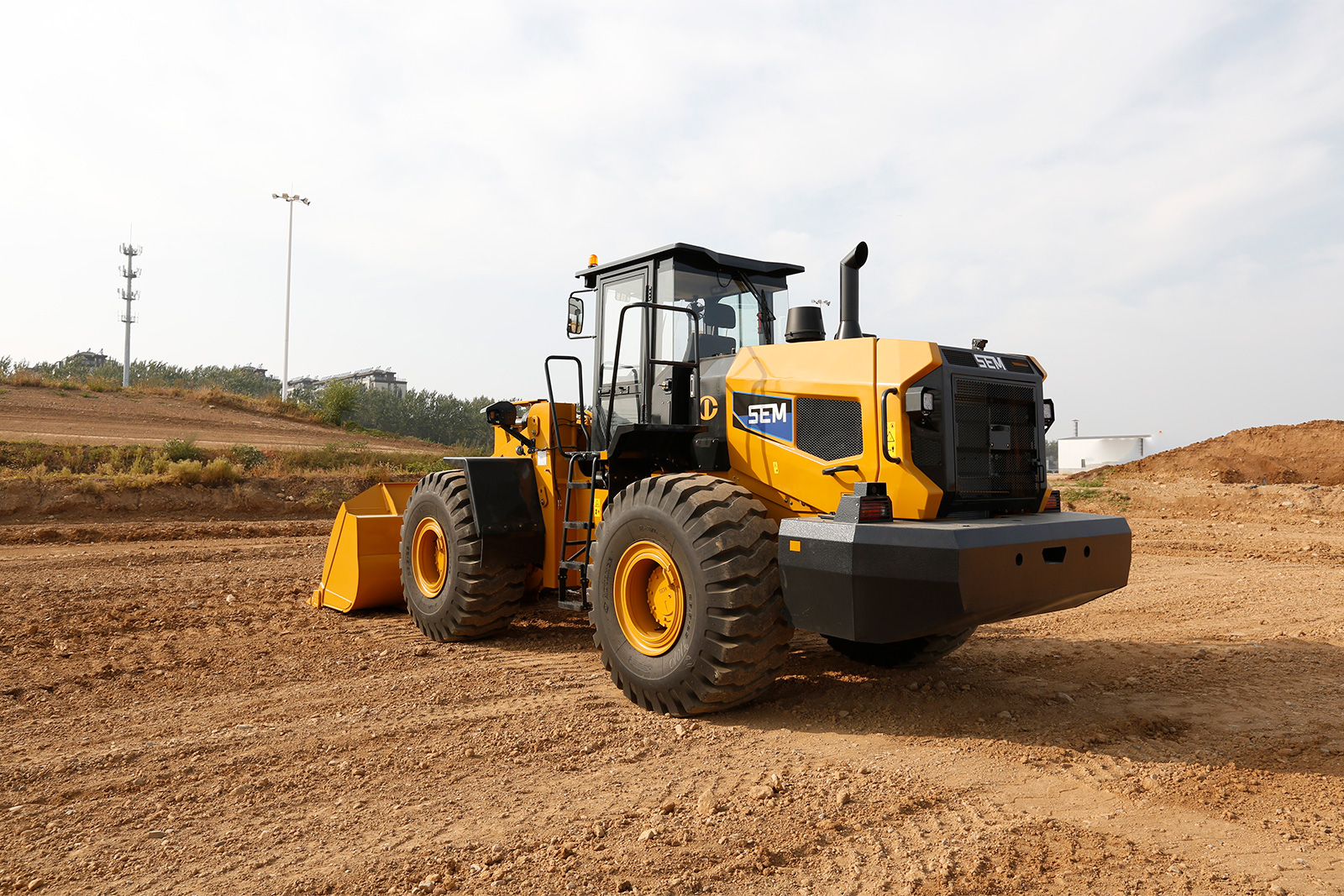

676F-EUEA 01

SEM_PRODUCTS_SEM618D

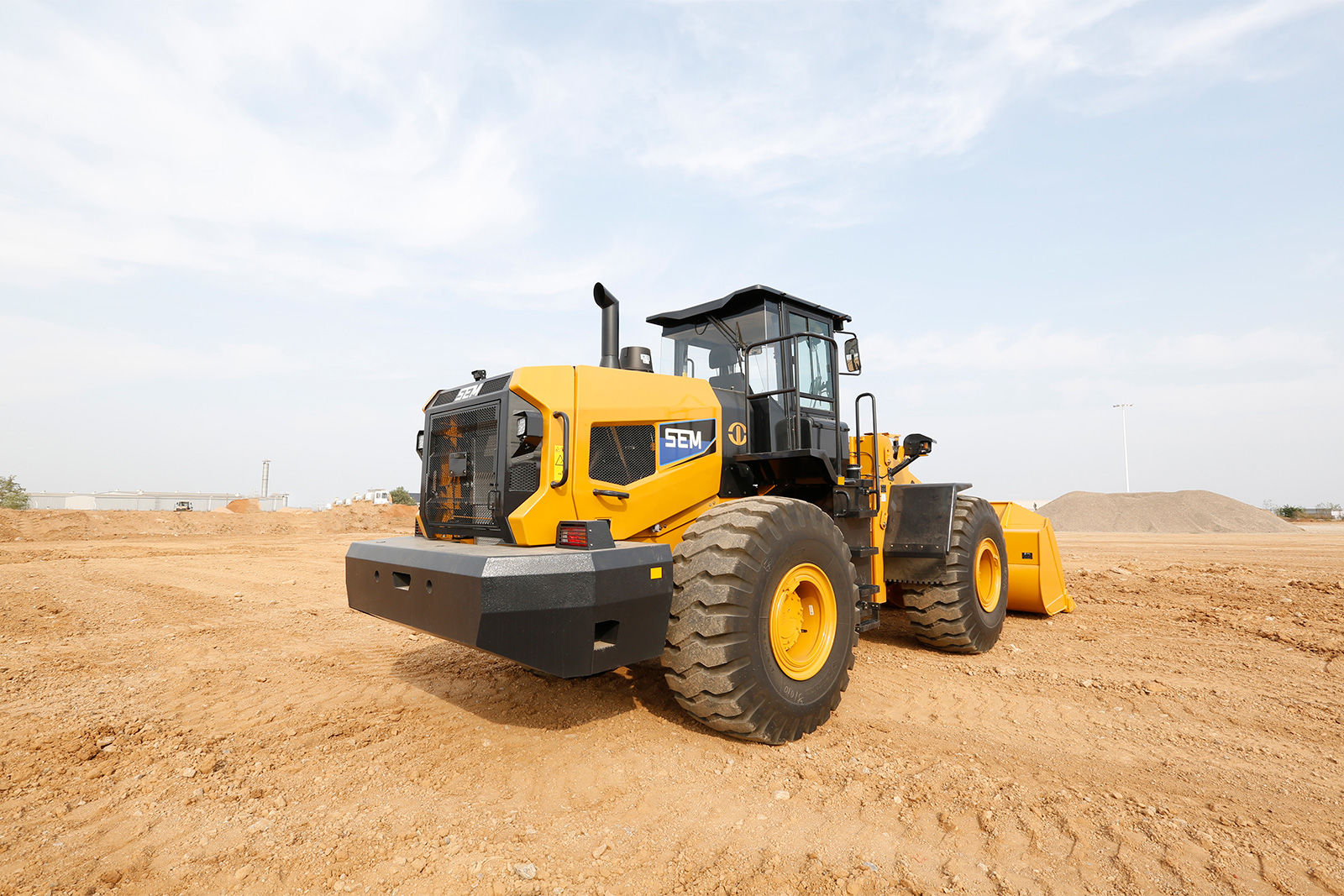

676F-EUEA 02

SEM_PRODUCTS_SEM618D

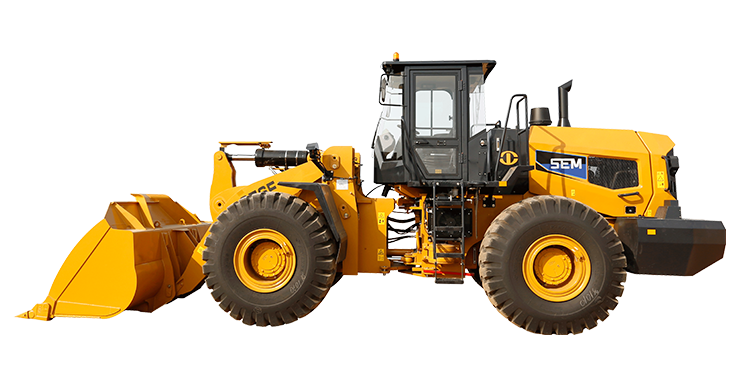

676F-EUEA 03

SEM_PRODUCTS_SEM618D

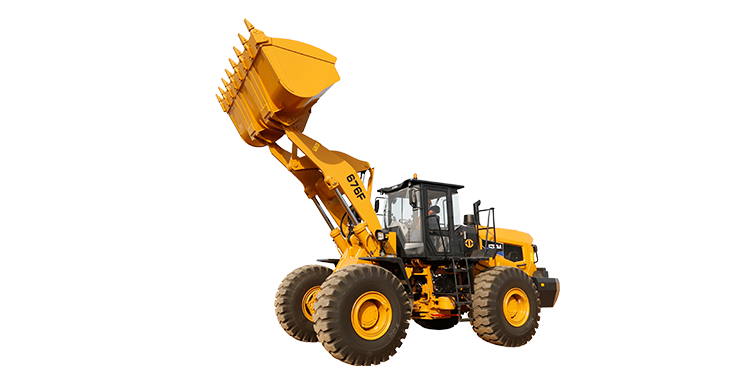

676F-EUEA 04

SEM_PRODUCTS_SEM618D

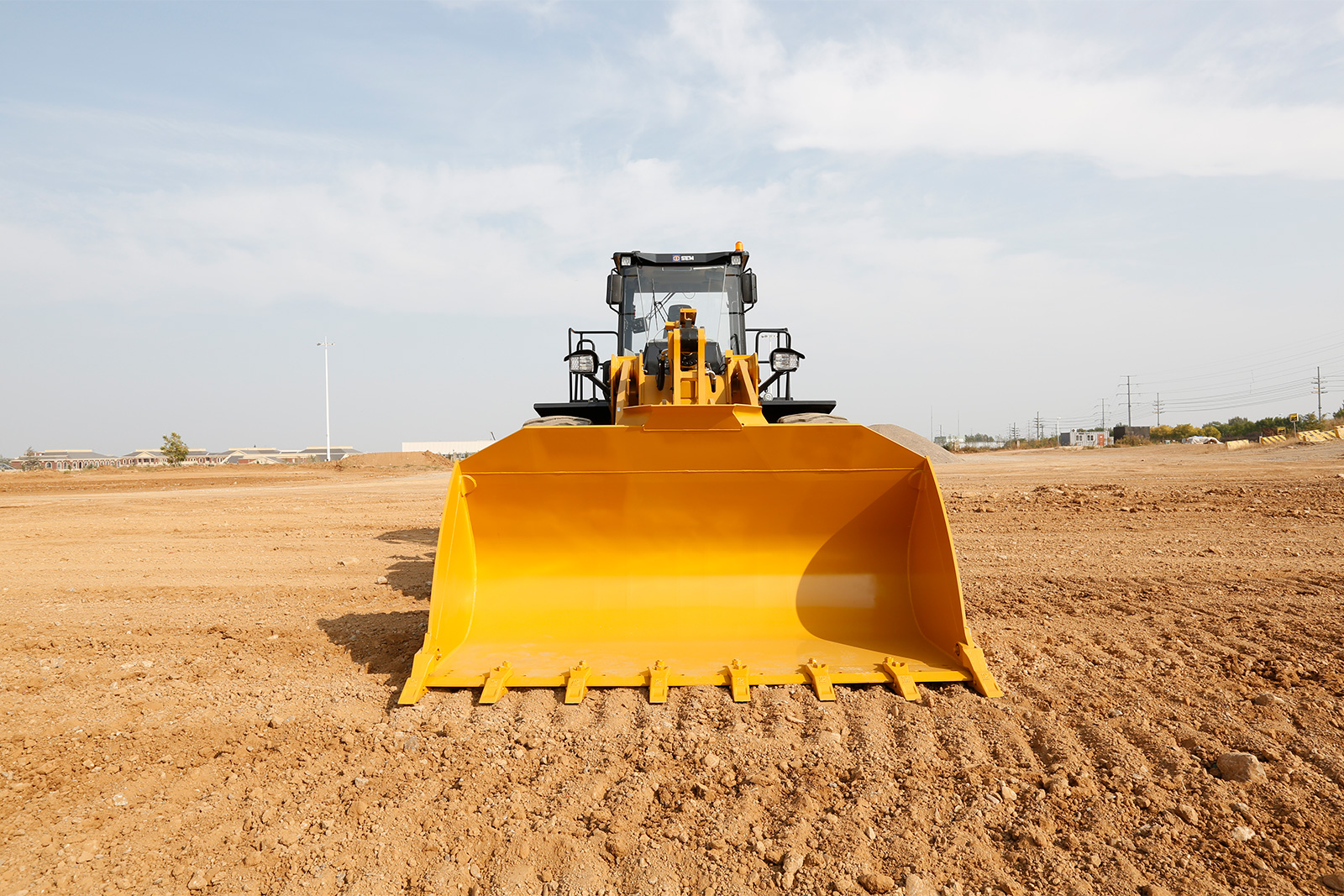

676F-EUEA 05

SEM_PRODUCTS_SEM618D

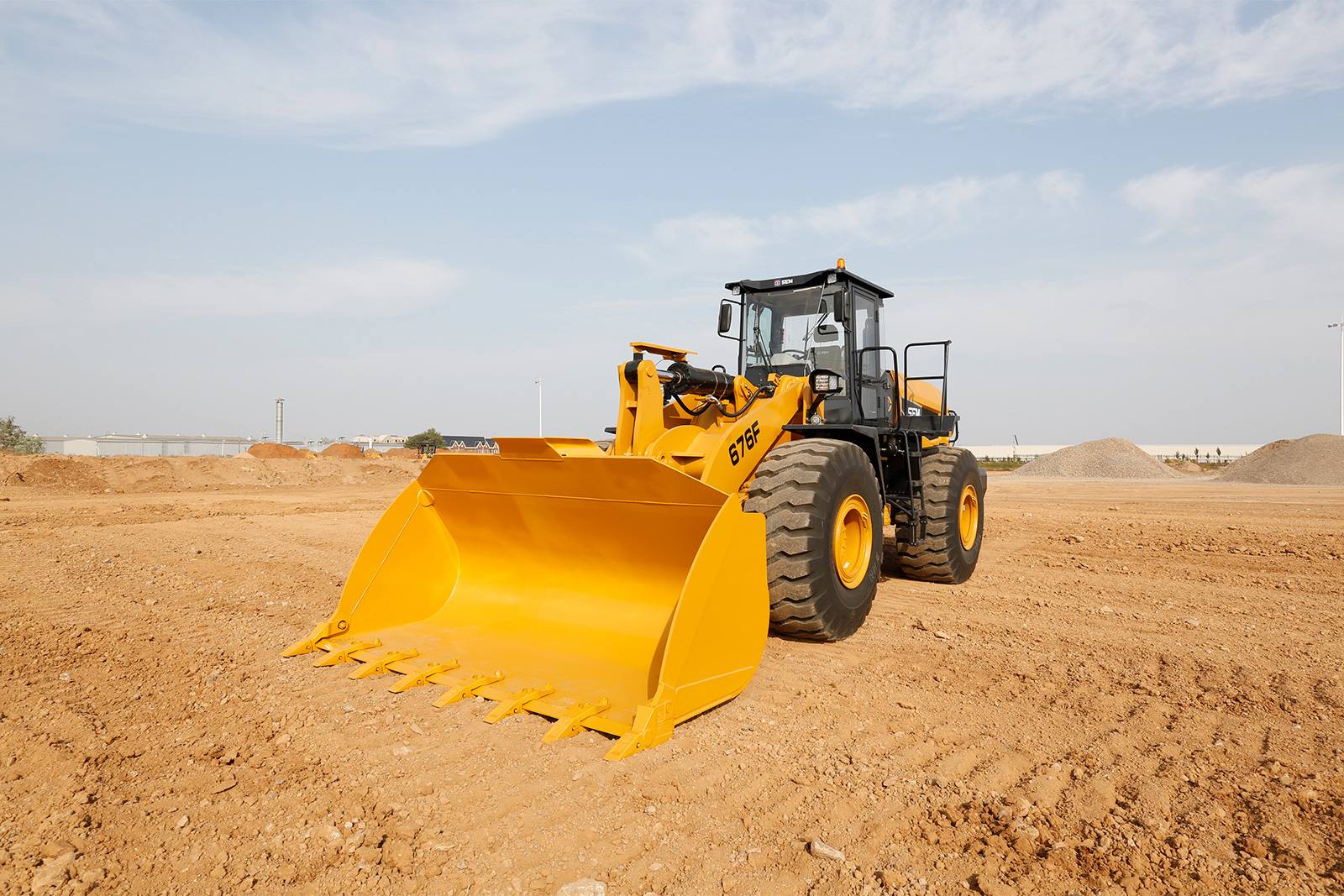

676F-EUEA 06

SEM_PRODUCTS_SEM618D

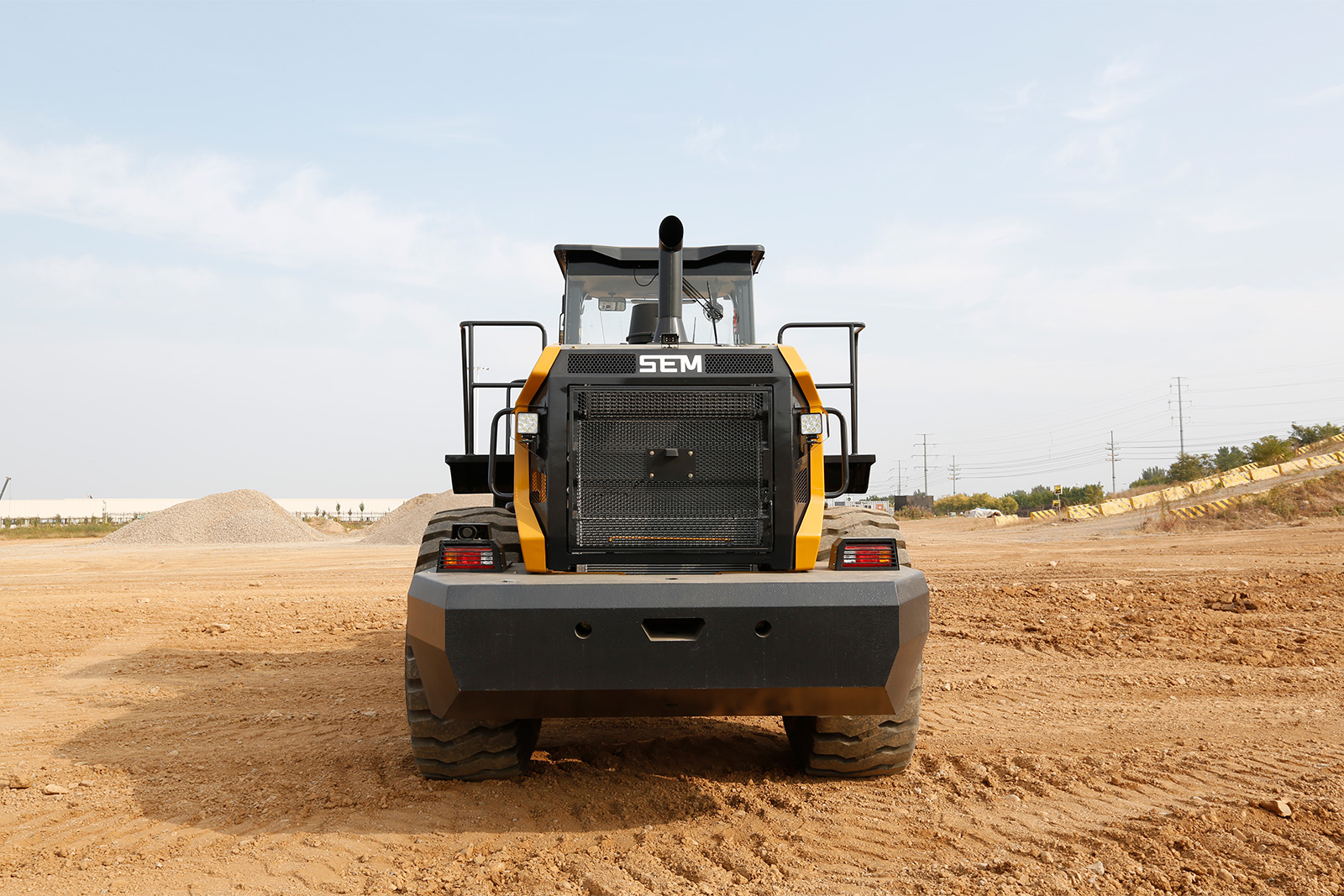

676F-EUEA 07

SEM_PRODUCTS_SEM618D

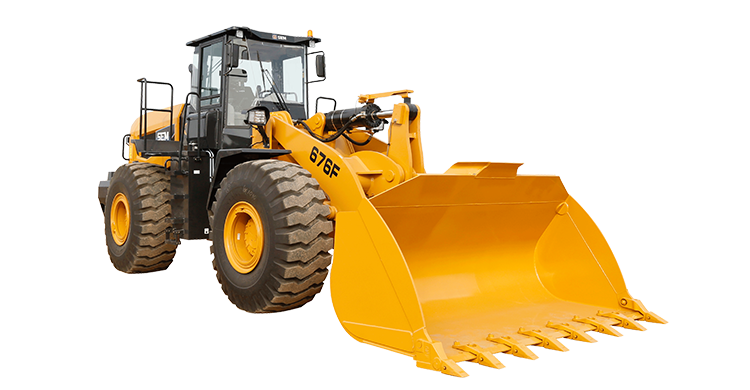

676F-EUEA 08
