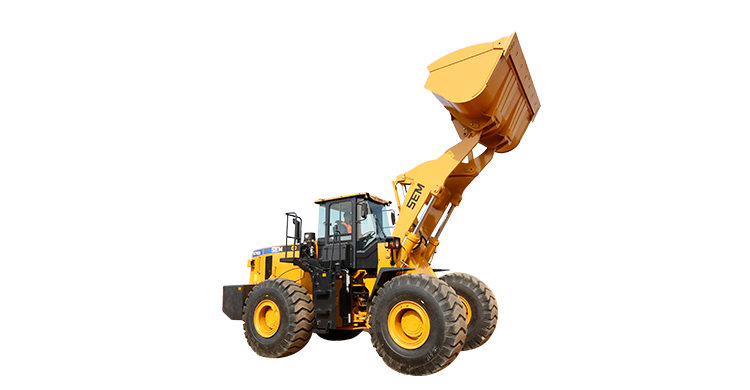

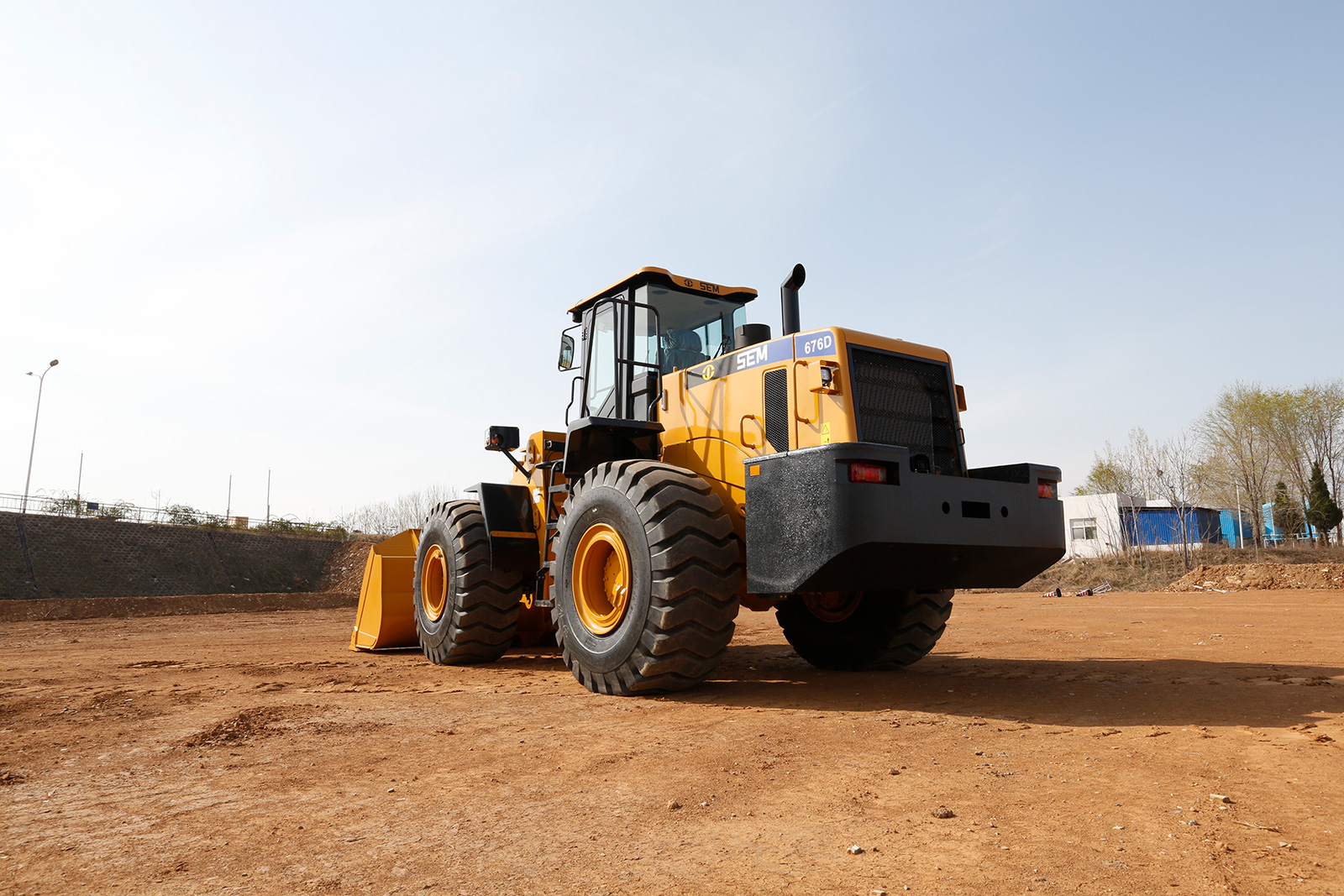

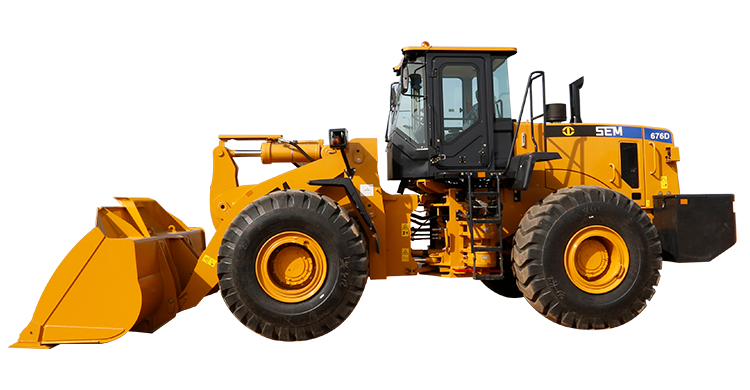

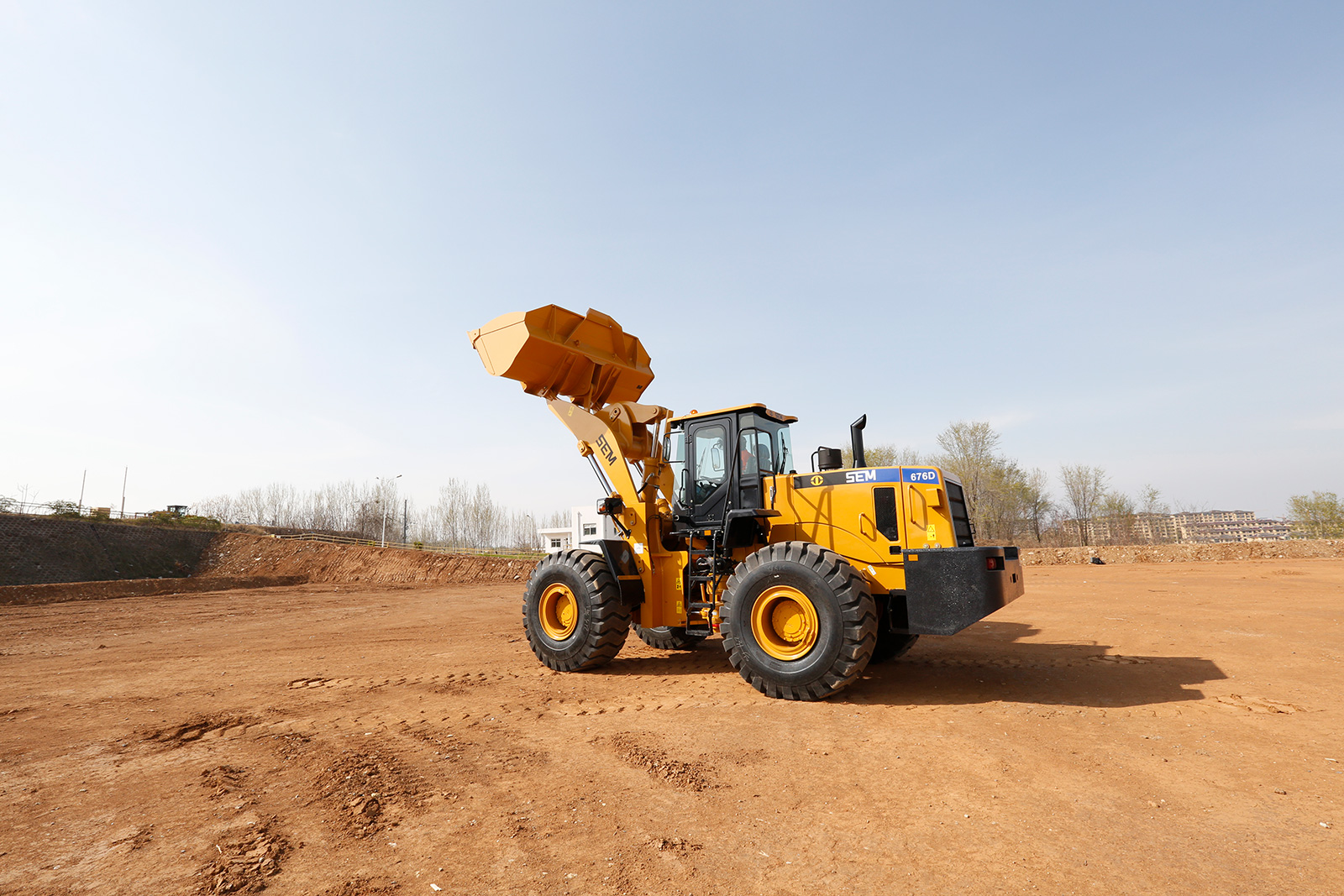

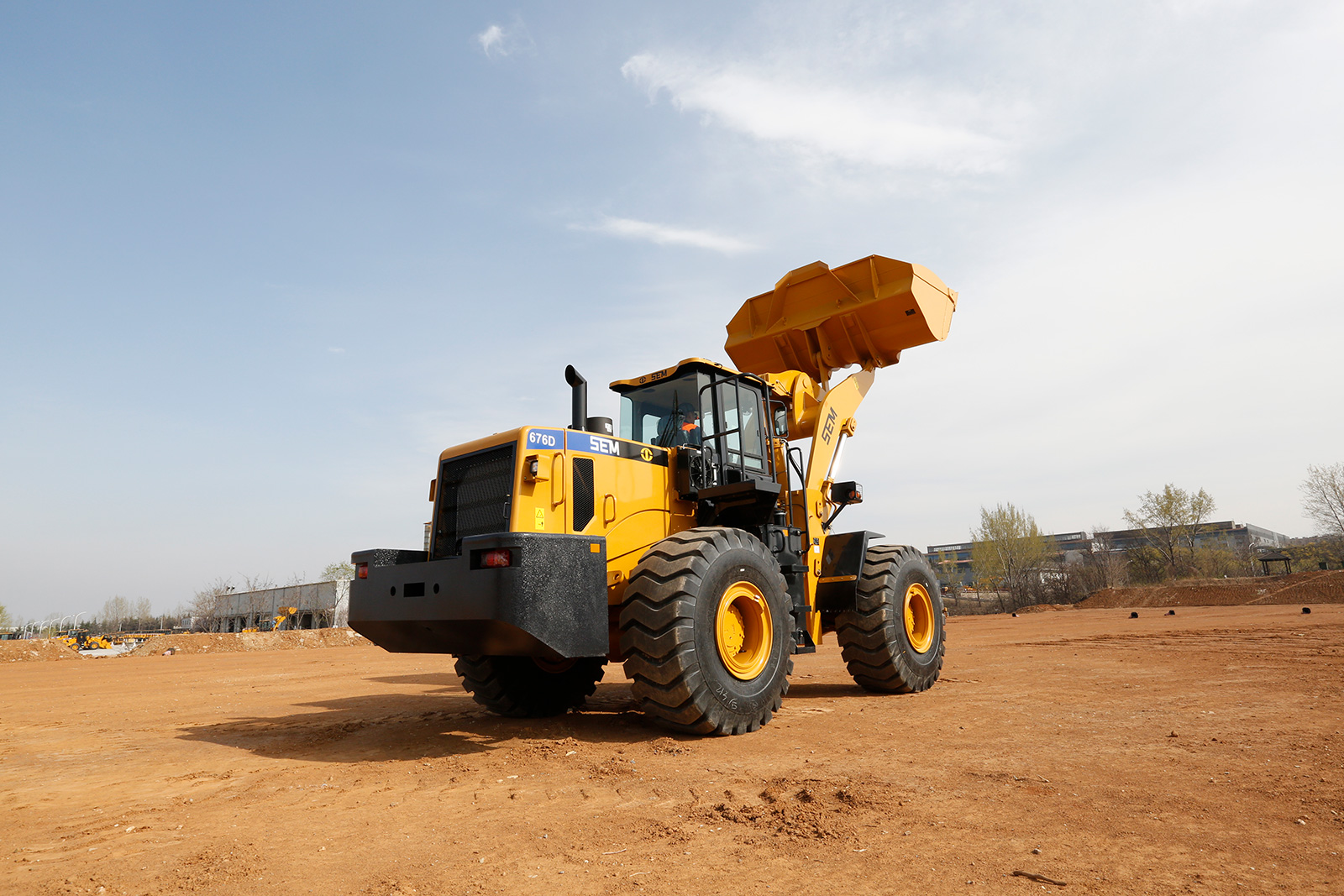

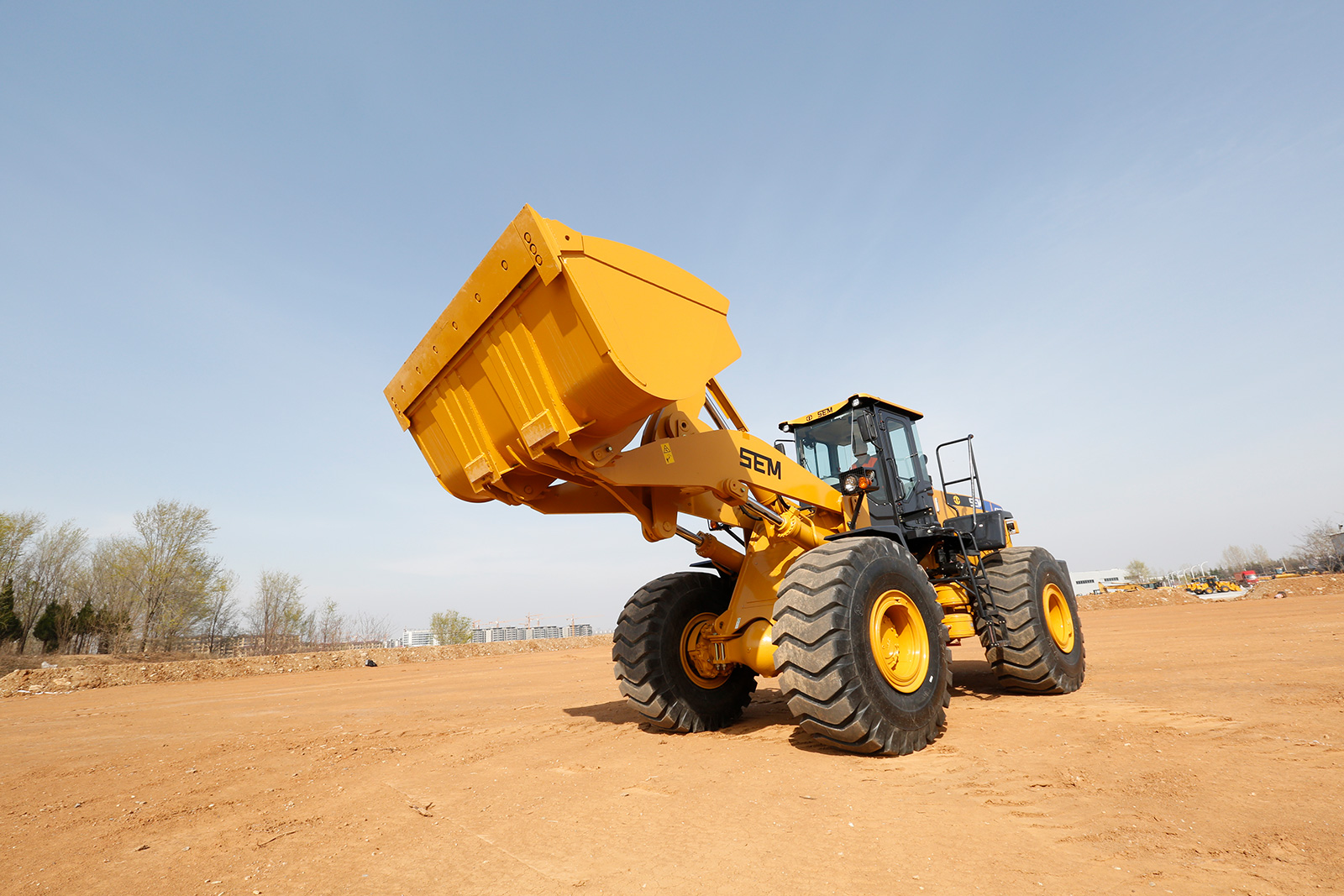

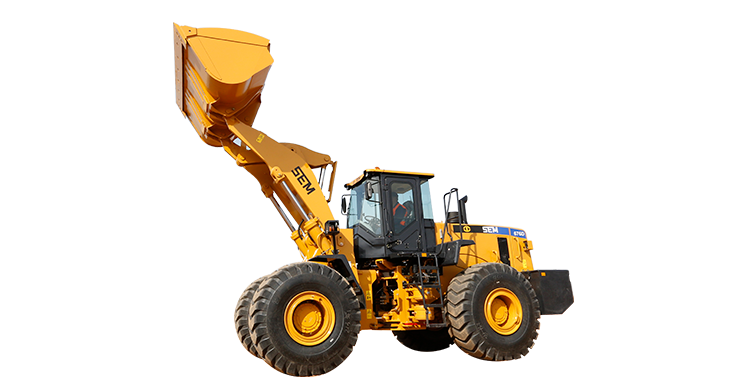

SEM676D

FNR (Forward-Neutral- Reverse) controller and KD (Kick Down) button integrated on pilot control, which makes operation easier
2nd-4th automatic gearshift and E-control automatic leveling function improve operating efficiency and comfort
World-class large displacement coaxial flow steering unit for better maneuverability

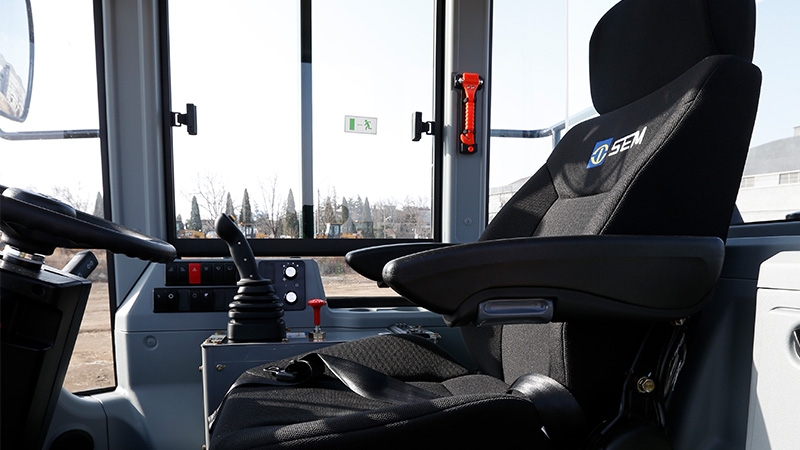

Large interior space and excellent visibility on the integrally molded cab, and fresh air pressurization function for improved ventilation

Weichai Stage III engine and 2 adjustable power modes to meet different application needs
Single load sensing hydraulic system supplies flow and pressure only when required, which saves fuel by 8%-12%
Performance series bucket loads more and makes it easier to dig into the pile, therefore reducing fuel consumption
Caterpillar split pump technology supplies oil separately to transmission and torque conver, resulting in 6% savings in fuel

Highly reliable Caterpillar designed and manufactured electrohydraulic control transmission
Smooth gearshift and self-protection function ensures durability of transmission

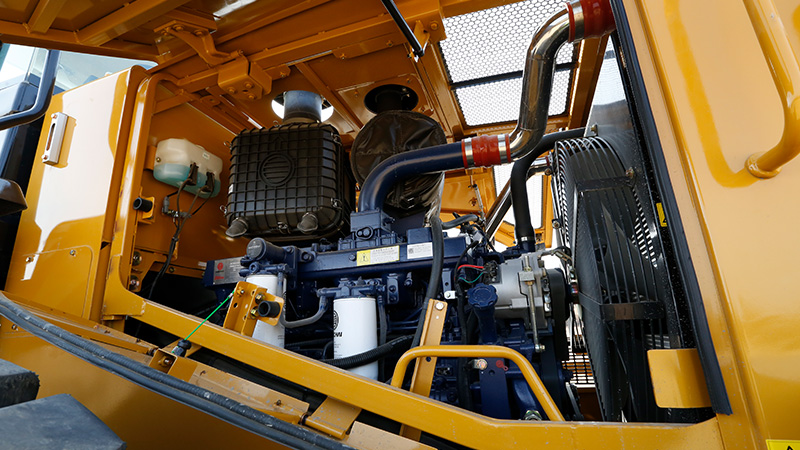

SEM customized Weichai engine delivers optimal power and productivity

Centralized lubrication points and optional automatic lubrication system to reduce maintenance time
Pressure test ports for improved diagnosis and oil sampling
long-span articulation design ensures ease of maintenance without additional space requirement on site
Simple and reliable powertrain design to ensure low customer O&O (Owning & Operating) costs
Wide angle engine hood for easy access to maintenance and service points
330L super-large fuel tank extends operating hours before refilling

Gear lock ensures that machine can only be started when it is in neutral

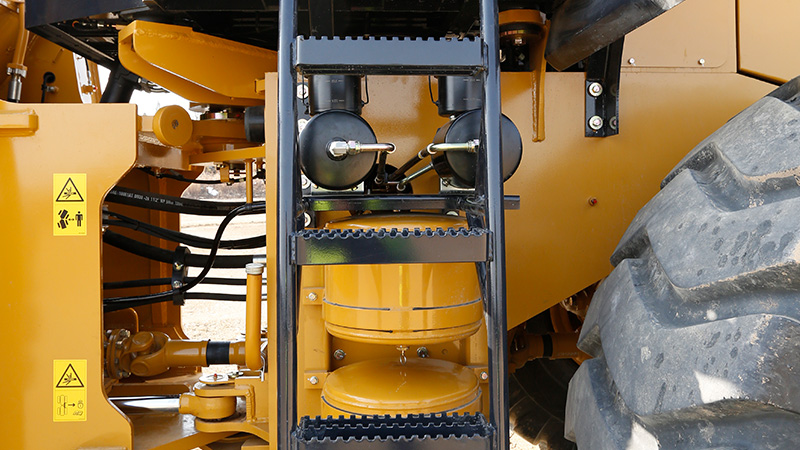

Dual-circuit brake system and optional brake dryer to improve machine safety
Three-point contact design when entering or exiting the equipment
Maintenance-free battery, backup alarm and beacon light to ensure safety of operator

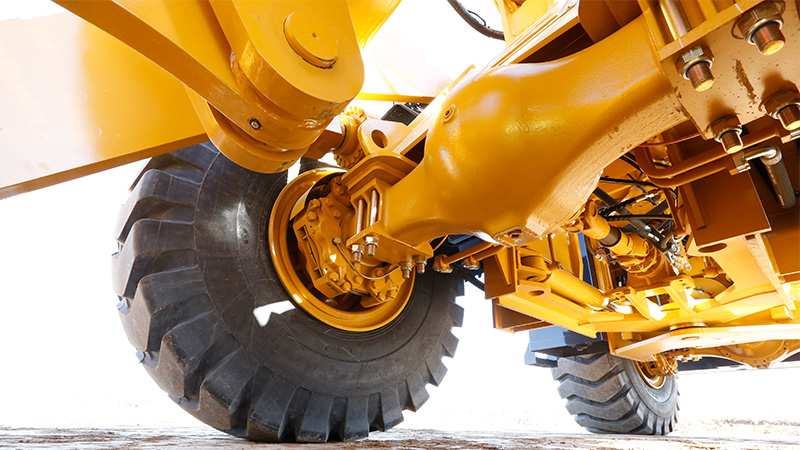

Six front and four rear brake calipers for excellent braking performance and reduce risk of overheating
Optional rear camera for enhanced visibility

Model
Model	SEM676D
Main Specifications
Rated Payload	7,000kg
Bucket Capacity	4.2-7.0m³
Wheel Base	3,450mm
Minimum Turning Radius Over Bucket	7,790mm
Operating Weight	23,000kg
Length	8,840mm
Width	3,260mm
Height	3,530mm
Operating Specifications
Breakout Force	215kN
Dump Clearance	3,250mm
Drawbar Pull Force	208kN
Dump Reach	1,310mm
Transmission
Transmission Type	EH Control
Transmission Gears	F4/R3
Engine
Engine Model	Weichai WP10G270
Rated Power	199kW
Rated Speed	2,200r/min
Implement Hydraulic System
Hydraulic Cycle Time	9.8
Implement Control Type	Pilot Control
Brake System
Service Brake	Dry & Caliper, Air to Oil Control
Parking Brake	Drum Type Shoe Brake
Steering System
Steering Angle (L/R)	35°
Tires
Size	26.5-25
Type	Bias
Layer	24
Textured Type	L3/E3

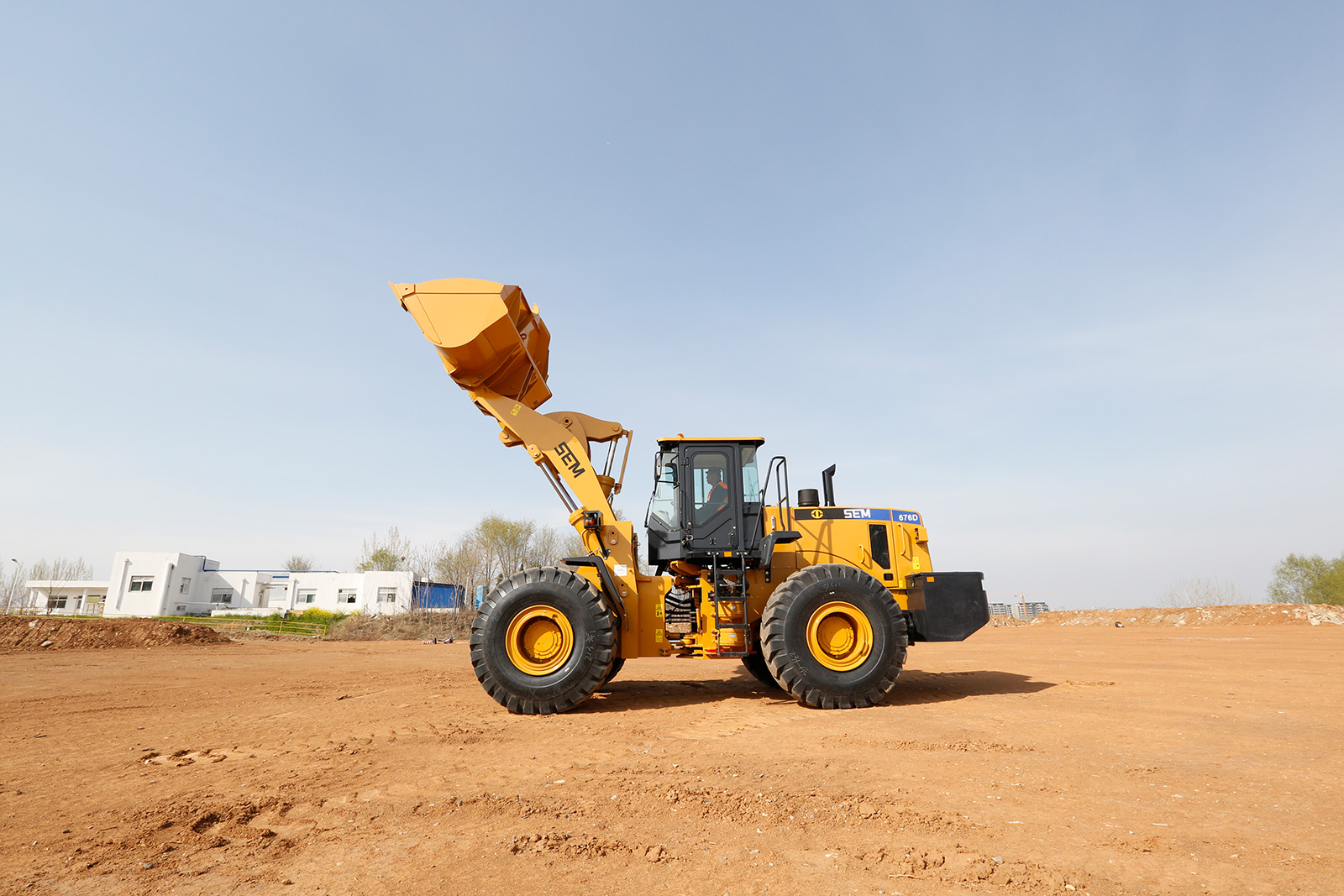

SEM676D 01

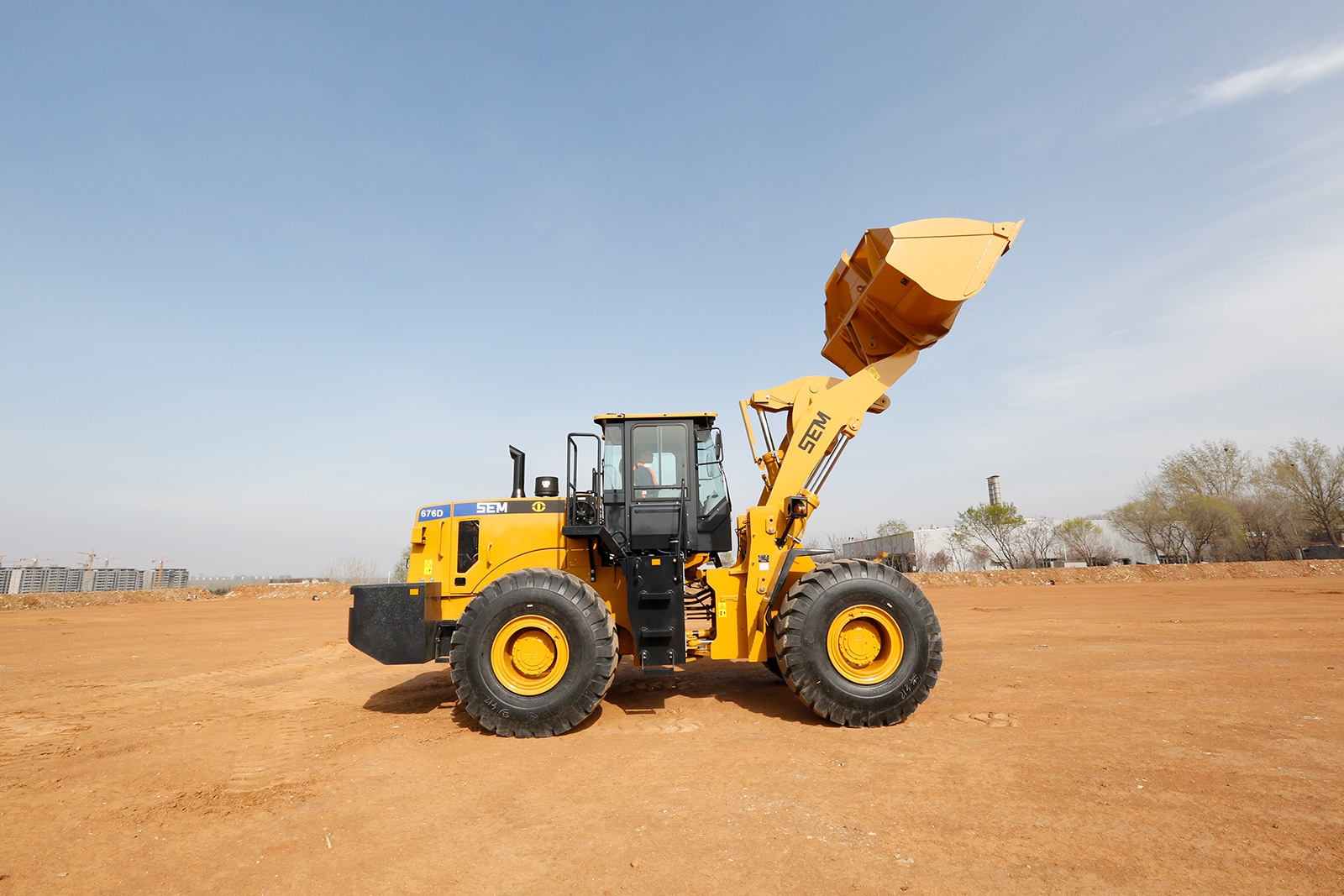

SEM676D 02

SEM676D 03

SEM676D 04

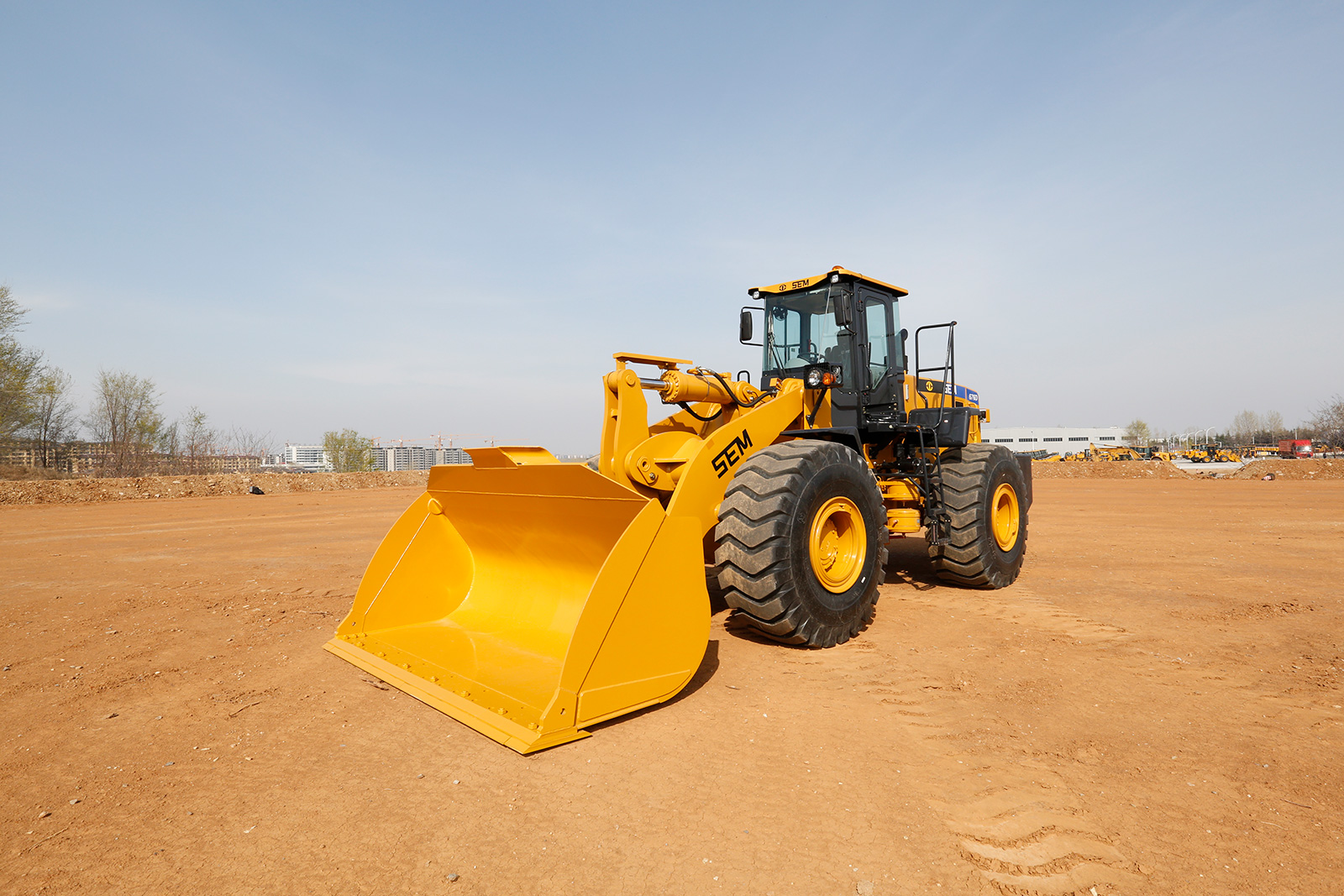

SEM676D 05

SEM676D 06

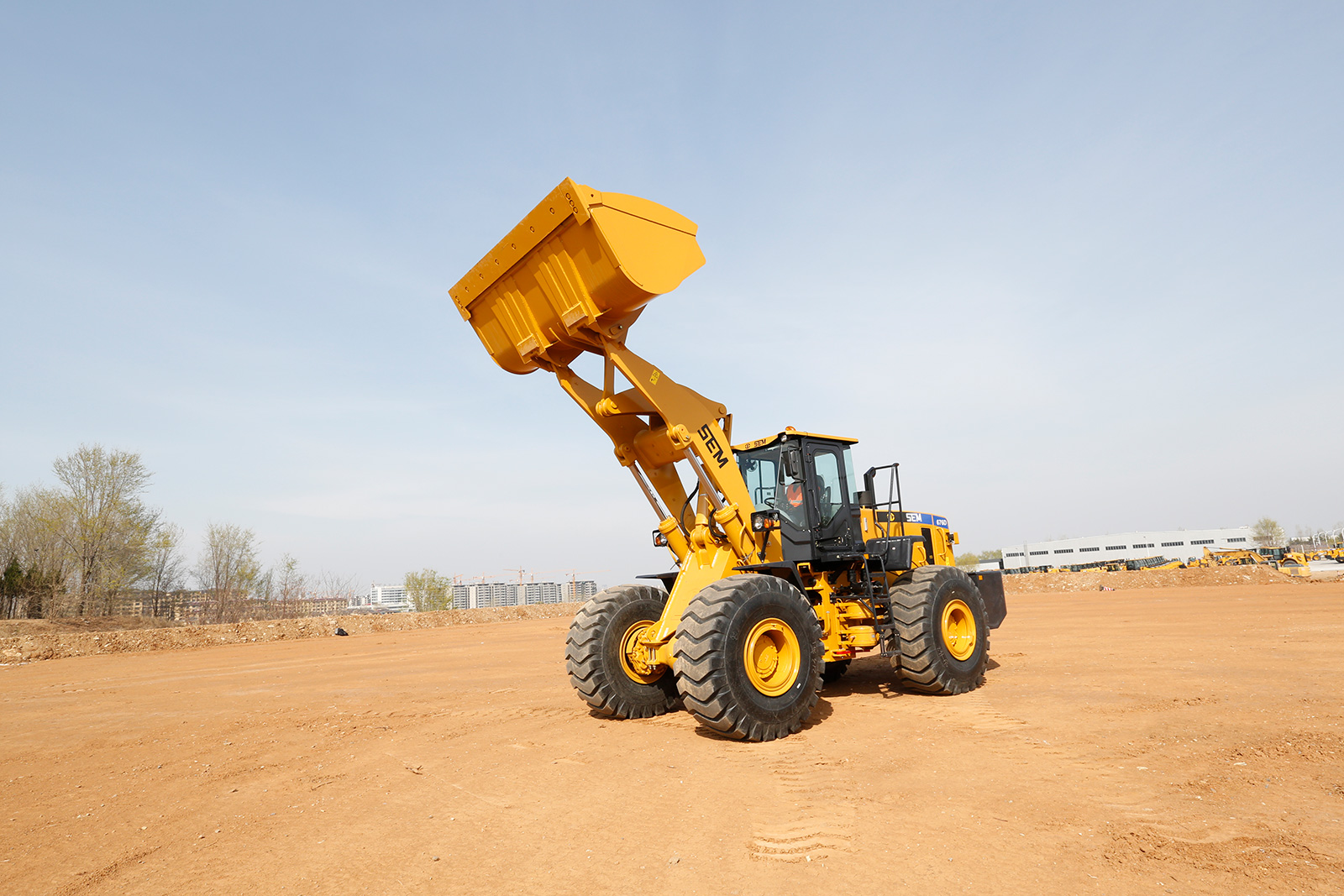

SEM676D 07

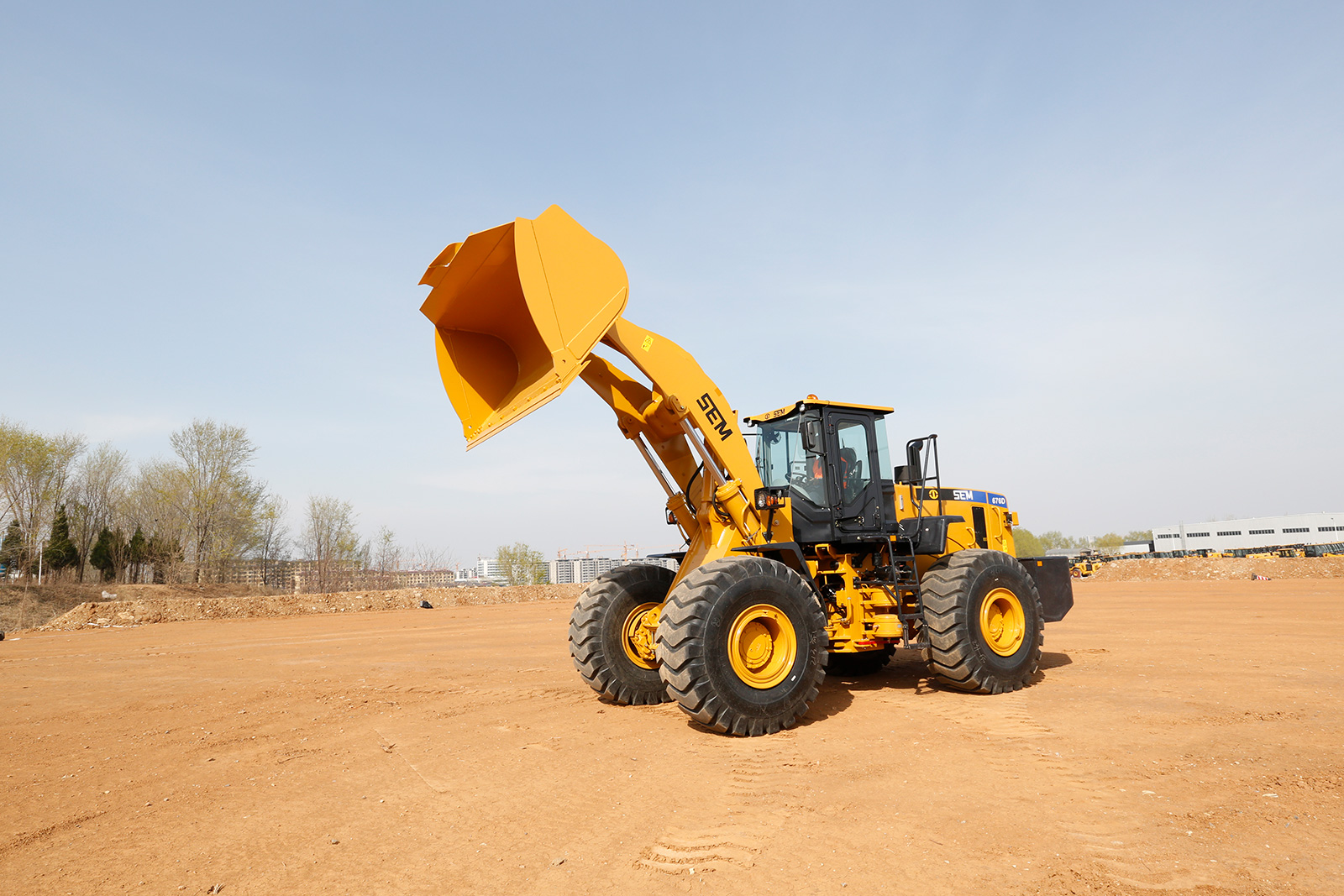

SEM676D 08
