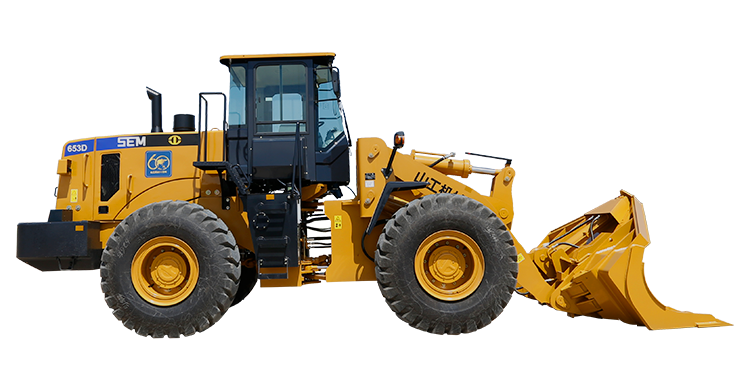

SEM653D

  • Key Specification
  • Advantage
  • Application
    • Rated Payload ： 5,000kg
    • Operating Weight with Standard Bucket ： 16,640kg
    • Bucket Capacity ： 2.6-5.5m³
    • High Productivity
    • Best-in-class Reliability and Durability
    • Excellent Fuel Economy
    • Outstanding Operator Comfort
    • Railway / Highway / Airport
    • Port
    • Quarry
    • Municipal Construction
    • Agriculture
    • Water Conservancy / Hydropower
    • Waste
    • Coal
    • Forestry
    • Log Grapple
    • Concrete
    • Tunnel
    • Iron & Steel
Inquiry Download Brochure
  • Feature
  • Specification
  • Video
  • Photo
  • Download Brochure

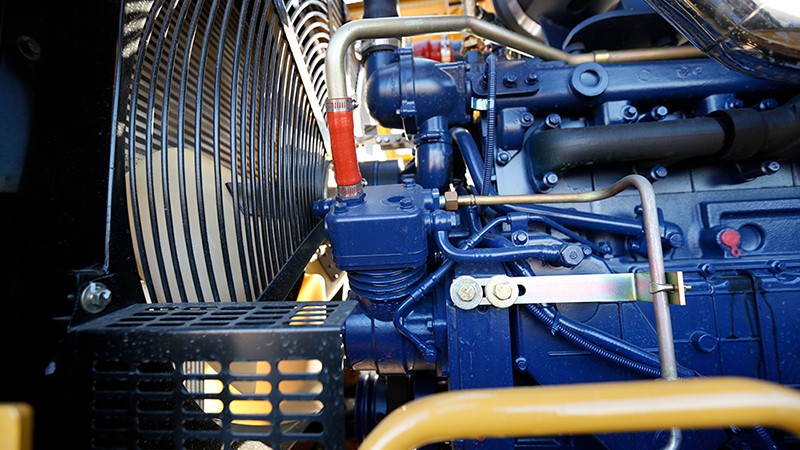

Engine

  • Low speed engine and E-fan make fuel consumption better
  • 3 stage air cleaner with 93% efficiency pre cleaner reduce earlier wearing, high efficiency fuel filter make engine work in good condition
  • Cat technology damping mount reduce vibration failure

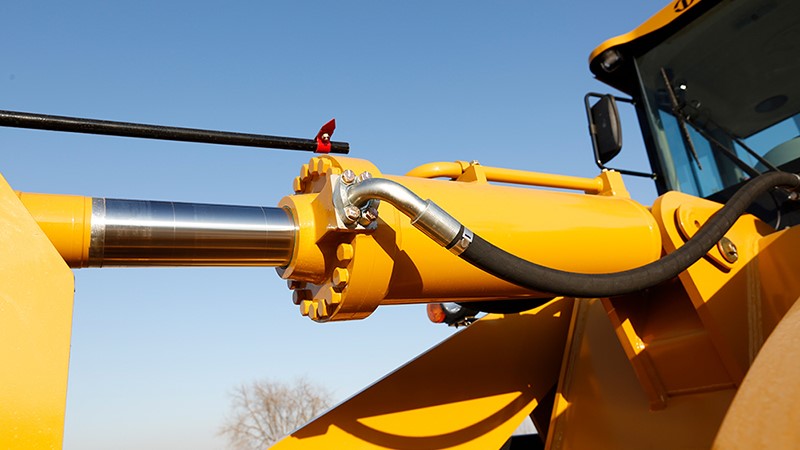

Efficient Hydraulic System

  • Excellence modulation performance implement valve with mechanical control, make operation more accurately
  • Full hydraulic load sensing steering and flow shared system save fuel and raise productivity, hydraulic cycle time is only 9.3s
  • Word class pump and Cat technology lines routing deliver better reliability

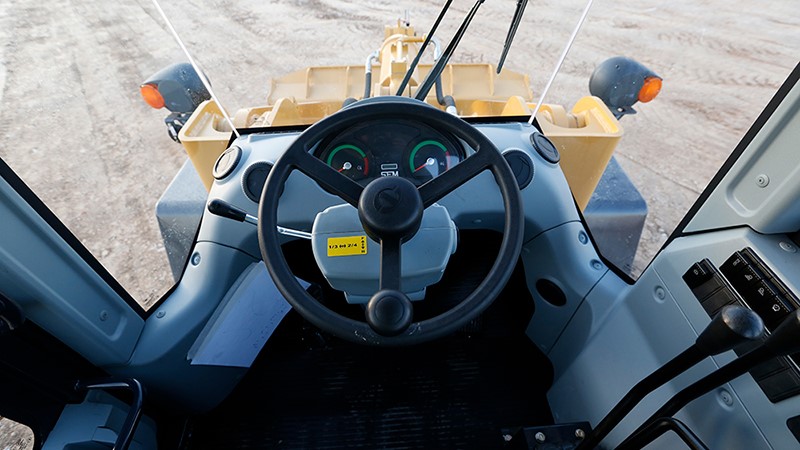

Operator Station

  • Mould formed cab with all trims design and more vents with HVAC make operator feel better
  • First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
  • Cat technology damping mount reduce vibration failure
  • Slide window, fresh air inlet system make environment better

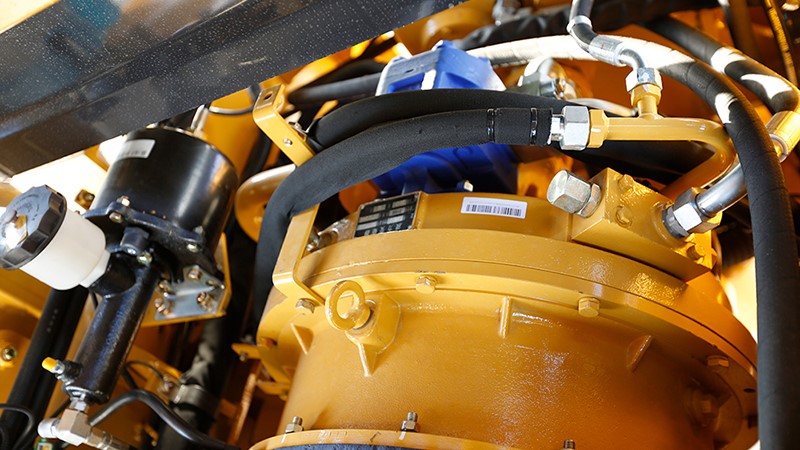

Drivetrain

  • SEM made in house counter shaft transmission reliable and high efficiency, core components reliable improvement
  • One stage and 3 element torque converter deliver higher efficiency
  • 1st gear higher draw bar and 2nd gear faster speed make penetration easier and move material faster

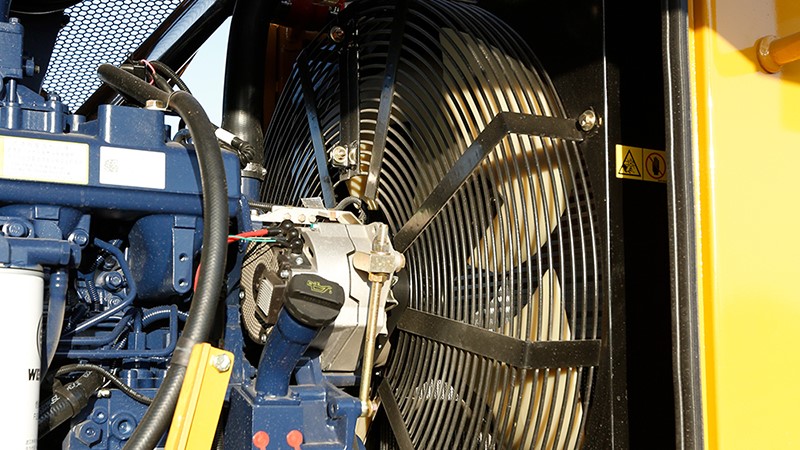

Cooling System

  • High performance aluminum cooling package suitable for most of severe applications
  • Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
  • Damping design reduce vibration failure

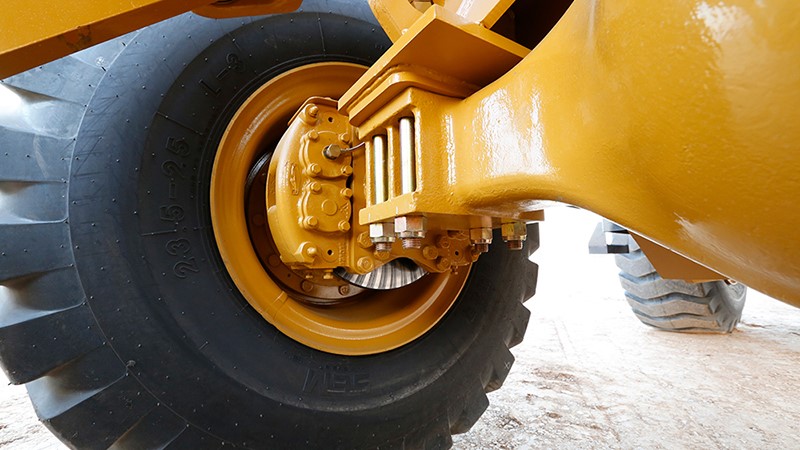

Solid Structure

  • Validated by Cat technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
  • Middle articulation frame less work space needed and reduce tire resistance
  • Large spread hitch design in acticulation section can stand more load

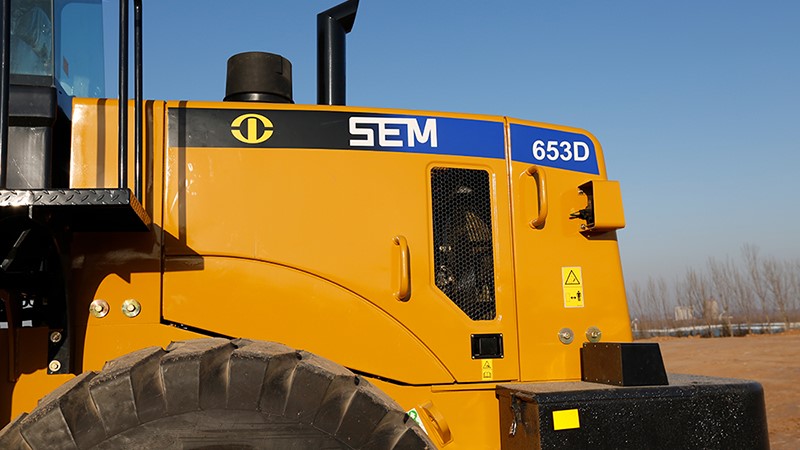

Serviceability

  • Quick pressure test ports on HYD and brake lines make diagnose easier
  • Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
  • Large spread hitch design in acticulation section make operator easier to approach

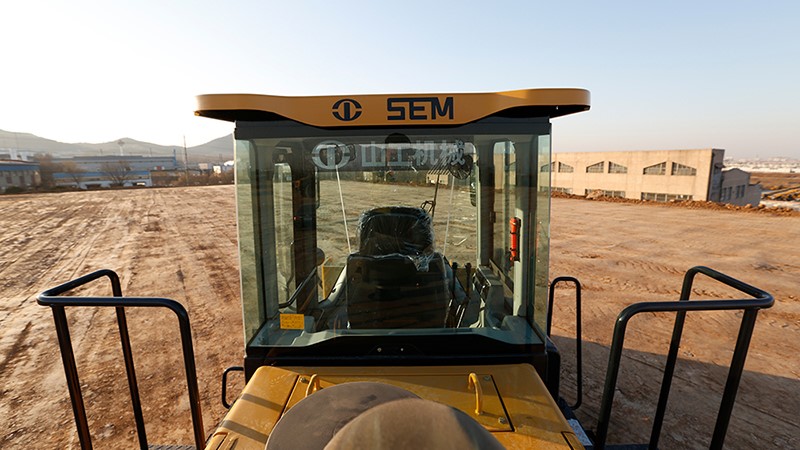

Safety

  • Slope switch make machine approach to hopper and pile in slope safety and easier
  • High decibel Beacon and backup alarm make person around easy to attention
  • 3 stage alarm system on panel
  • 3 touch points entering and exiting cab make operator more safe

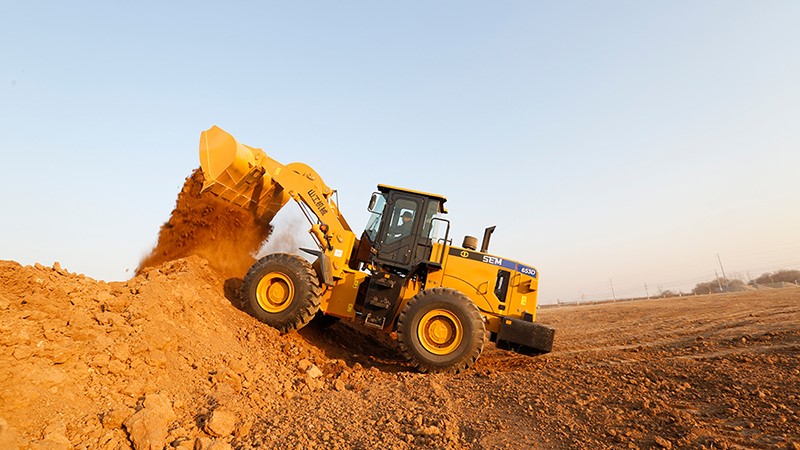

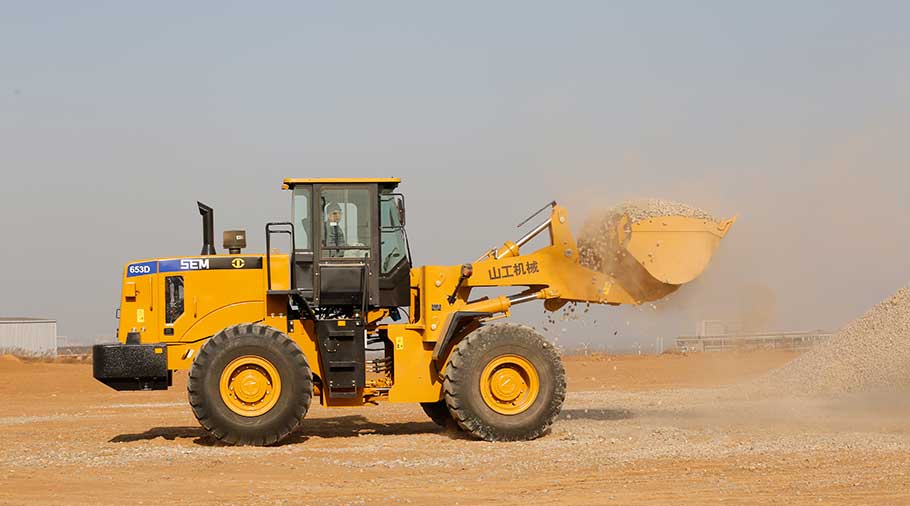

Machine Applications

  • Landscaping, building, sewer/water in, local construction
  • Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel
  • Highway, street, tunnel, airport, residential commercial
Model
ModelSEM653D
Main Specifications
Rated Payload5,000kg
Operating Weight with Standard Bucket16,640kg
Bucket Capacity2.6-5.5m³
Operating Specifications
Breakout Force177KN
Engine
Engine ModelWD10G220E23
Rated Power162kW
