SEM618D

  • Key Specification
  • Advantage
  • Application
    • Rated Payload ： 1,800kg
    • Operating Weight with Standard Bucket ： 5,940kg
    • Bucket Capacity ： 0.9-1.0m³
    • Best-in-class Reliability and Durability
    • Highly Efficient
    • Outstanding Operator Comfort
    • Railway / Highway / Airport
    • Port
    • Quarry
    • Municipal Construction
    • Agriculture
    • Water Conservancy / Hydropower
    • Waste
    • Coal
    • Forestry
    • Log Grapple
    • Concrete
    • Iron & Steel
Inquiry Download Brochure
  • Feature
  • Specification
  • Video
  • Photo
  • Download Brochure

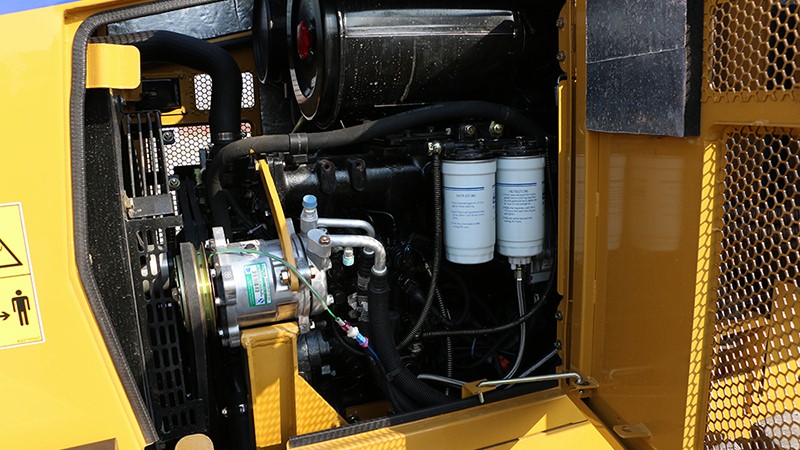

Engine

  • High efficiency thermal energy control technology, providing higher reliability and efficiency
  • Powerful engine with 30% torque reserve, making this machine suitable for most applications
  • Special technology control oil consumption on piston and sleeves. Fuel/oil rate is lower than 0.2%
  • Durable engine body design and lower noise

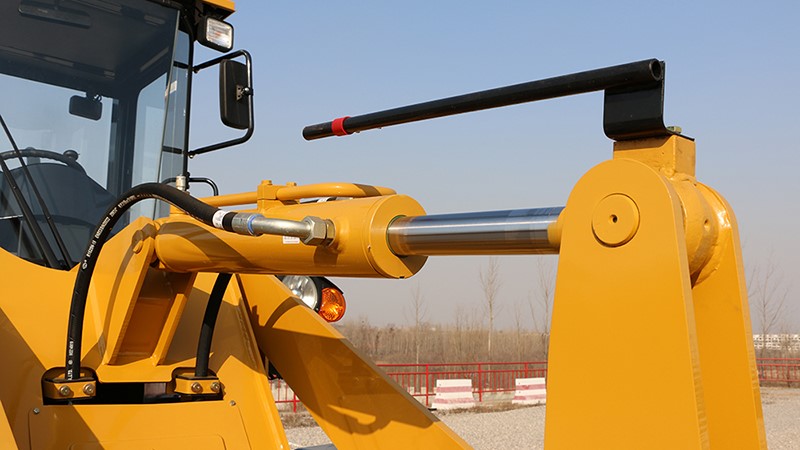

Efficient Hydraulic System

  • Full load-sensing steering hydraulic system provides lower fuel consumption and good operator comfort
  • Professional pump, valve and hose ensures higher reliability
  • Excellent line routing reduces abnormal leakage making hydraulic system more reliable
  • Quick cycle time at 7.8s ensures higher productivity

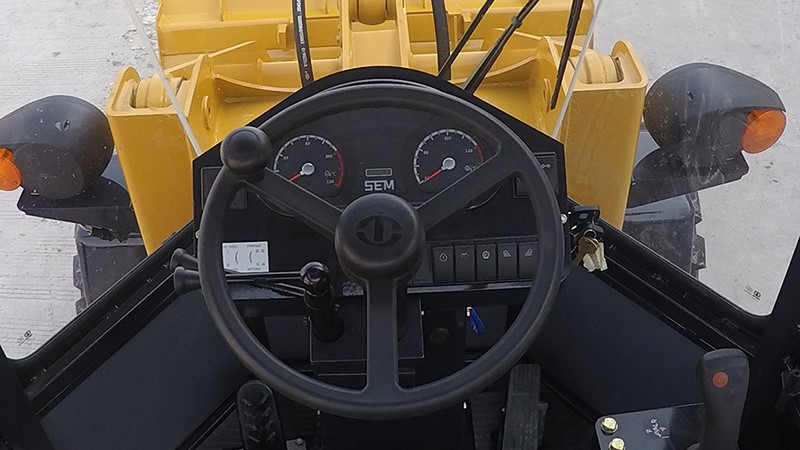

Operator Station

  • First class premium seat with adjustable suspension, arm rest and safety belt
  • AC (optional) for better temperature control inside cab

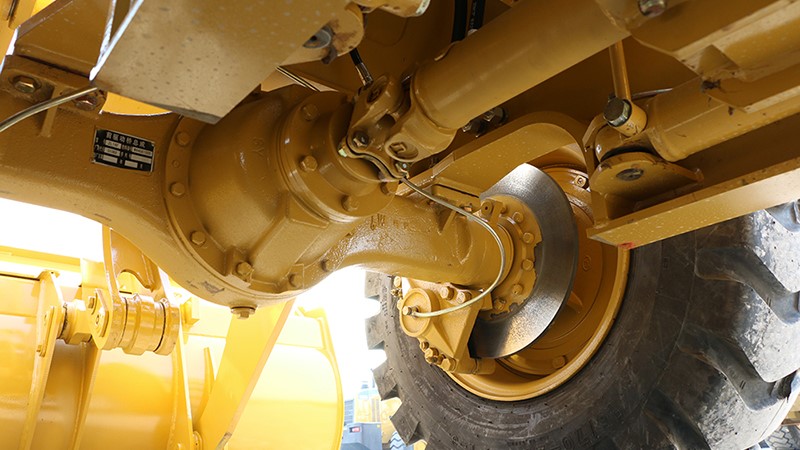

Drivetrain

  • Professional counter shaft transmission and axle making machine more reliable
  • One stage, 3 elements torque ensures higher efficiency

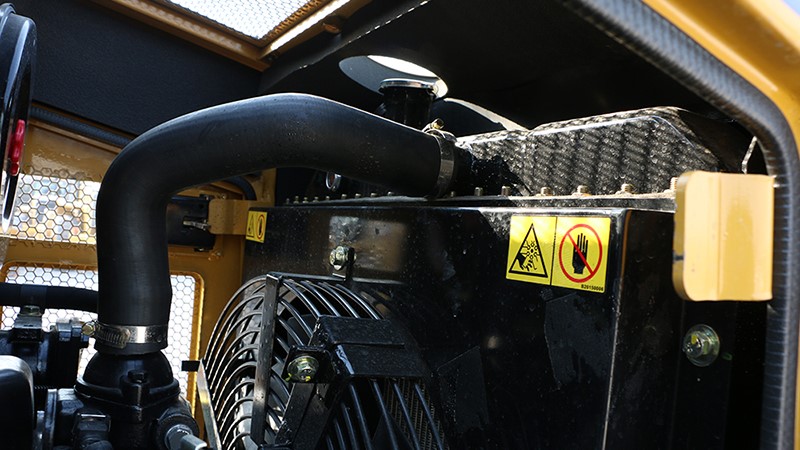

Cooling System

  • High performance aluminum cooling package provides higher reliability
  • Oil cooler and radiator parallel design can balance heat load inside and makes machine suitable to be used in diversed applications
  • Damping design reduces vibration failure

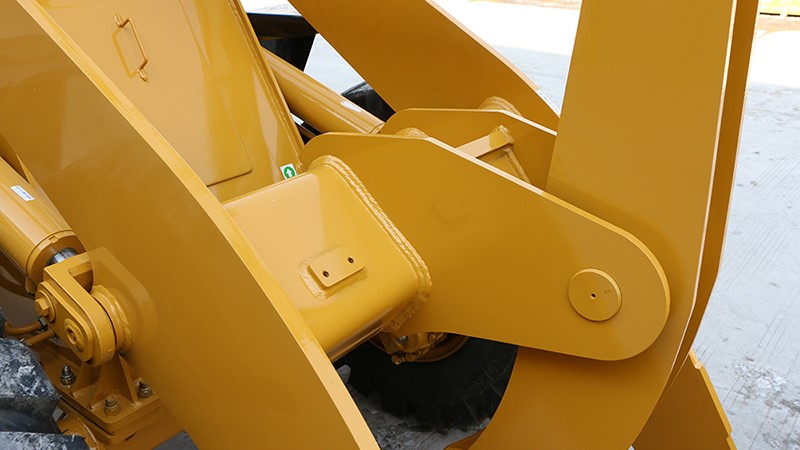

Solid Structure

  • Validated by Cat technology FEA (Finite Element Analysis) and OMSA (On Machine Stress Analysis)
  • Middle articulation frame requries less work space, reduces tire resistance and saves fuel
  • Large spread hitch design in acticulation section can stand more load

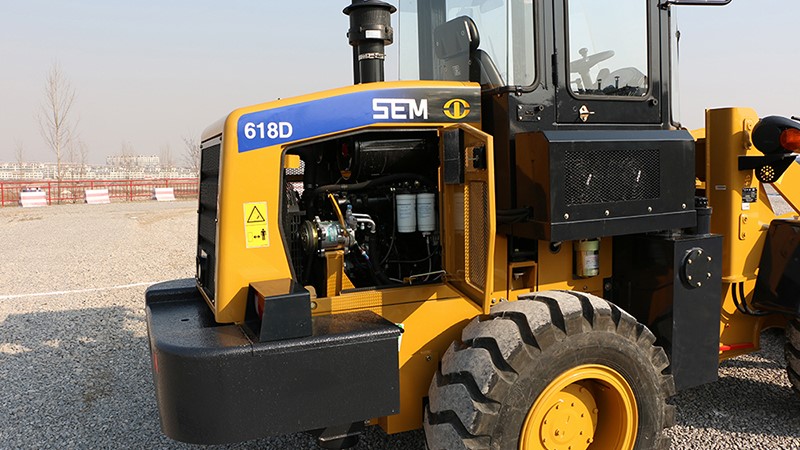

Serviceability

  • Quick pressure test ports on HYD and brake lines make diagnosis easier
  • Large wing hood door makes service easier, easily access to air cleaner, fuel filter and oil filter
  • Large spread hitch design in articulation section for eacy acccess

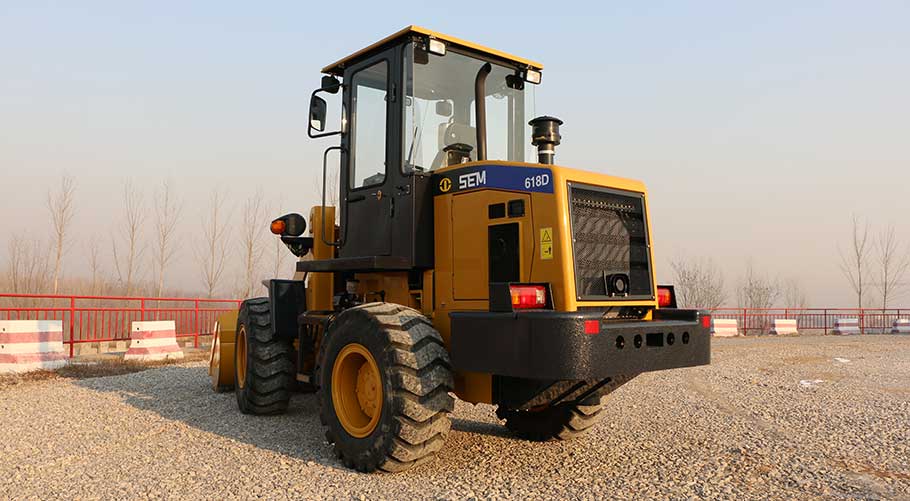

Safety

  • High decibel beacon and backup alarm
  • Two boosters design make brake effective

Machine Applications

  • Widely used in municipal, livestock production and farms
  • Also in industrial, recycled material processing in countryside, cement making etc.
Model
ModelSEM618D
Main Specifications
Rated Payload1,800kg
Operating Weight with Standard Bucket5,940kg
Bucket Capacity0.9-1.0m³
Wheel Base2,200mm
Overall Dimension5,901*2,000*2,822mm
Operating Specifications
Breakout Force63KN
Transmission
Maker & TypeZL15
Engine
Engine ModelYT4B4-22
Rated Power60kW
