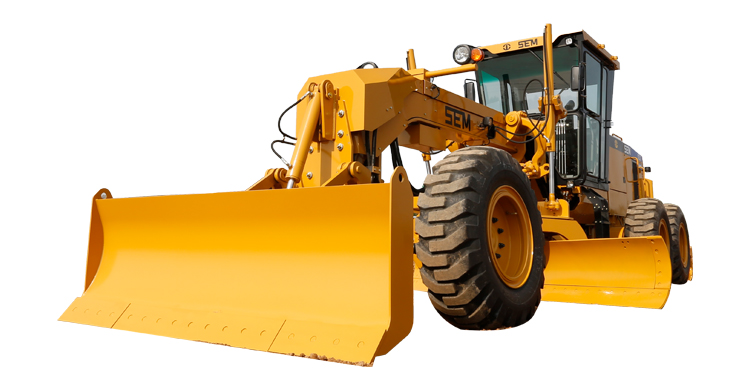

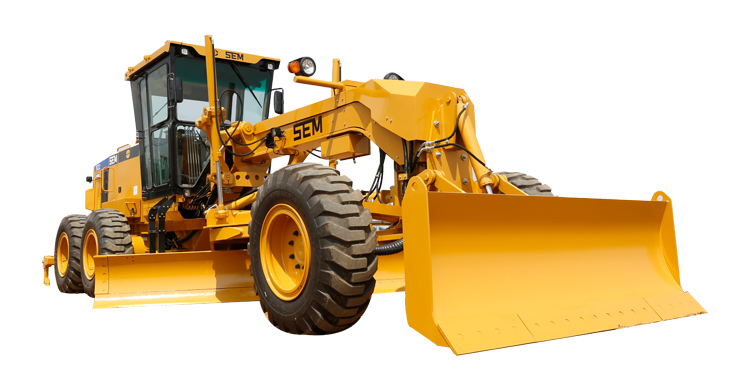

SEM922AWD

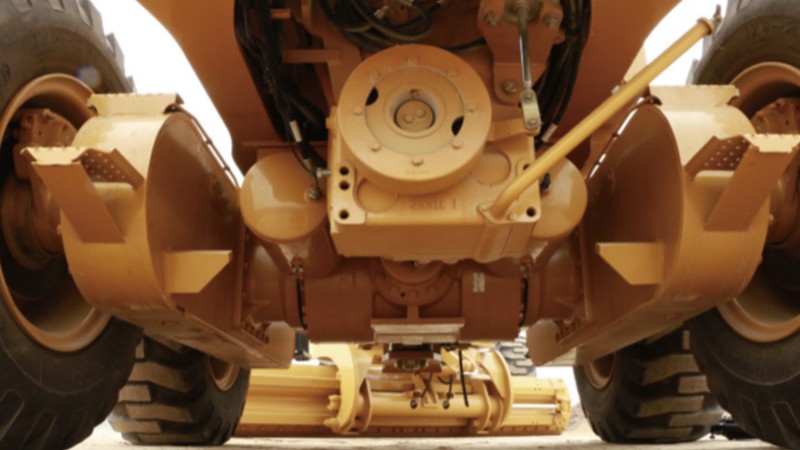

Leveraging Caterpillar designing and experience on MG tandem axle
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory　 performance testing before delivering to MG assembly line

7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost

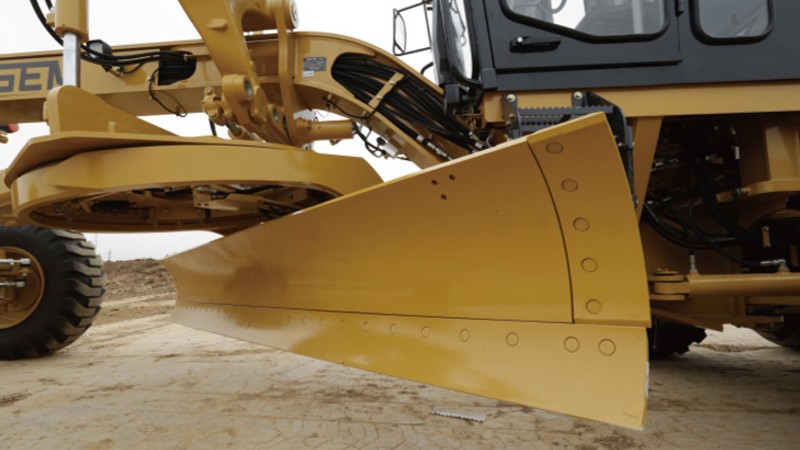

Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
Provides protection for machine and pavement during snow removal and snow plowing

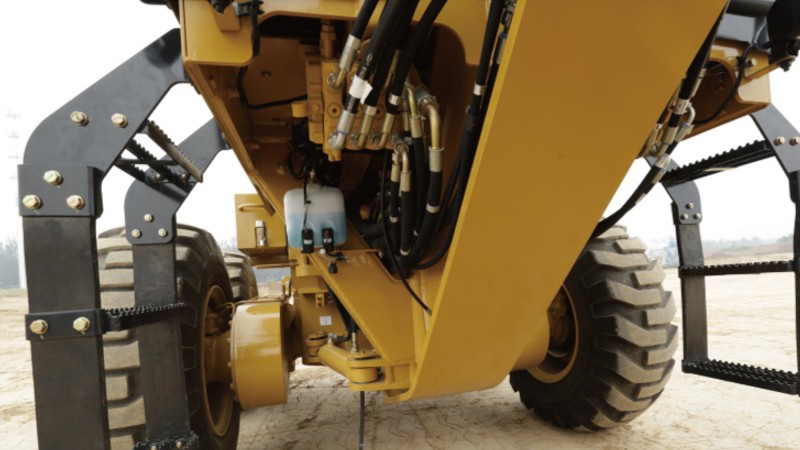

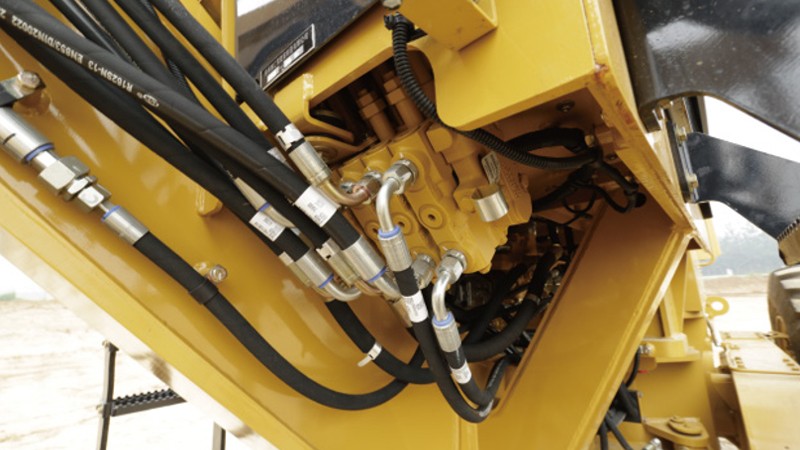

Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

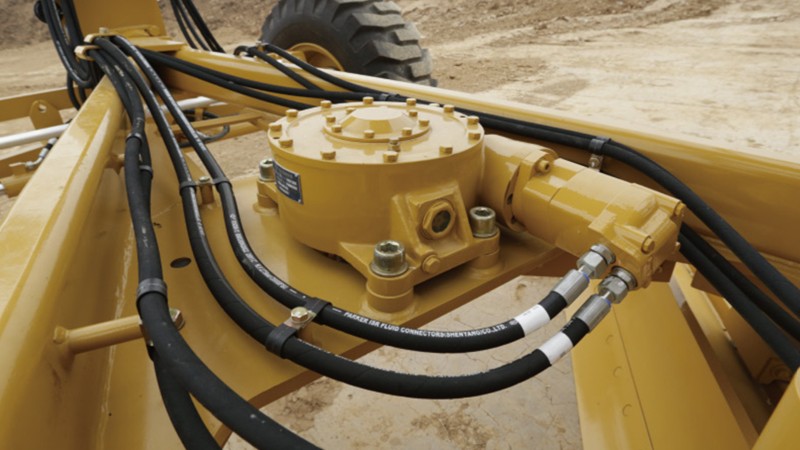

A-frame tubular design drawbar provides maximum strength and durability
Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
Easy removal of wear shims to adjust drawbar

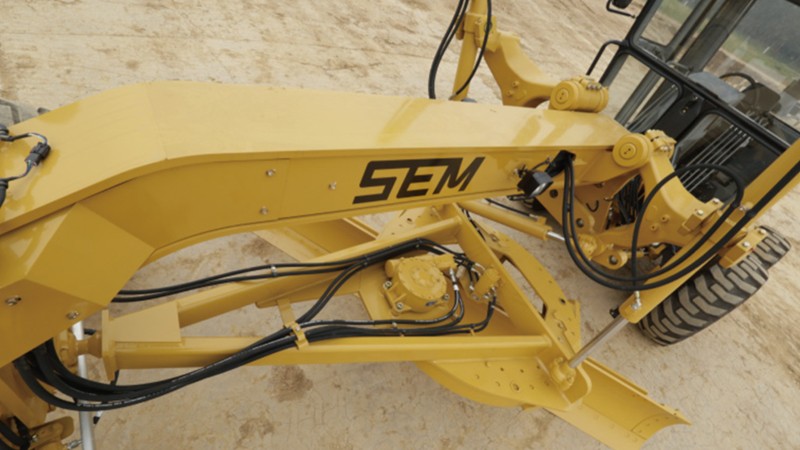

Flanged box section design removes welds from high stress areas, improving reliability and durability
Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
Hydraulic hose routing minimizes exposure to damage and provides quick access forservice
Maintenance-free bushings improve durability and reduce overall service cost

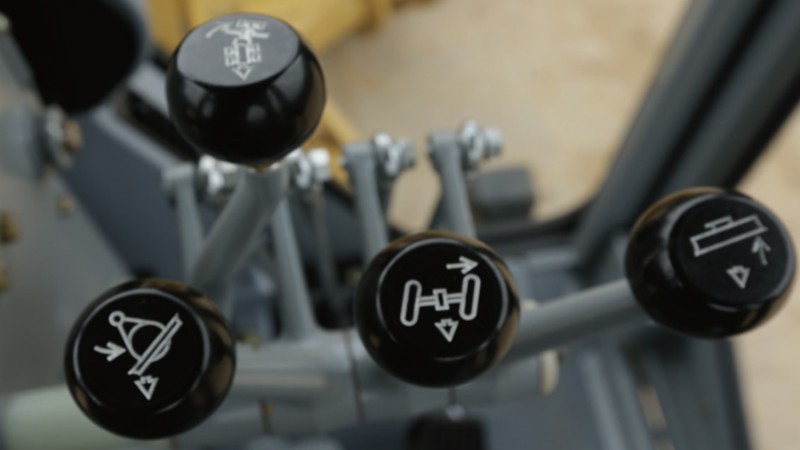

Short throw levers are efficiently spaced, allowing ease of multi-function control
Short lever travel (40mm) with low lever effort reduces operator fatigue

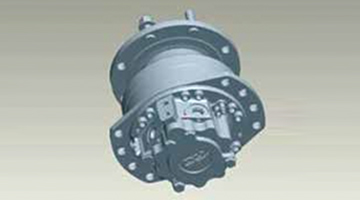

All wheel drive (AWD) function designed for poor underfoot applications (snow, sand, gravel, mud, etc.)
Infinitely variable speed pumps and two-speed motors maximize torque in each gear delivering the most power to the ground
Exclusive steering compensation system enables a “powered turn” with improved control and a dramatic reduction of turning radius in poor underfoot conditions

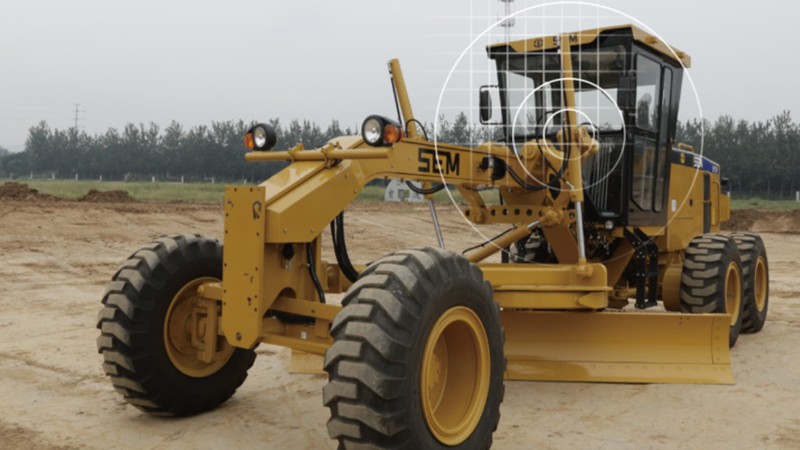

Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.

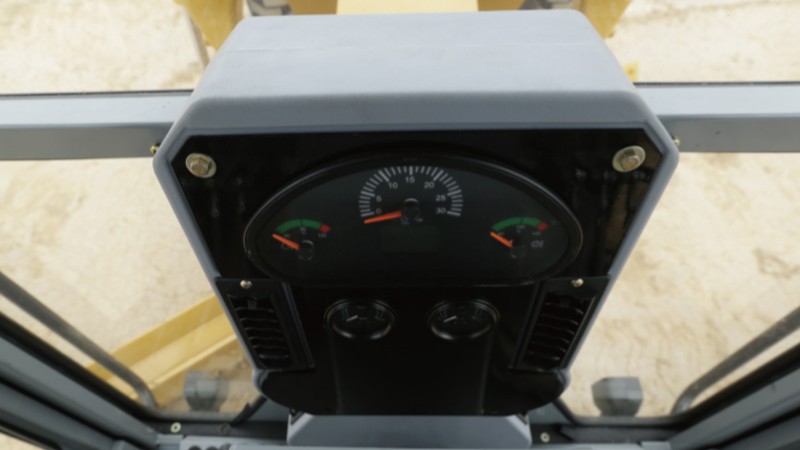

High performance dashboard with 3 levels alarming monition system
Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort


Model	SEM922AWD
Main Specifications
Operation Weight (Base Machine)
Hydraulic System
Operating Weight
Standard	16,560kg
Engine
Engine Brand
Engine Manufacturer	SDEC
Engine Model	SC9DK220G2
Rated Power	162 @ 2,200kW @ RPM
Emission	Tier 2
Tandem Axle
Oscillation (Front up/Rear up)
Moldboard
Blade Width, Standard	4,279mm

SEM922AWD-1

SEM922AWD-2

SEM922AWD-3

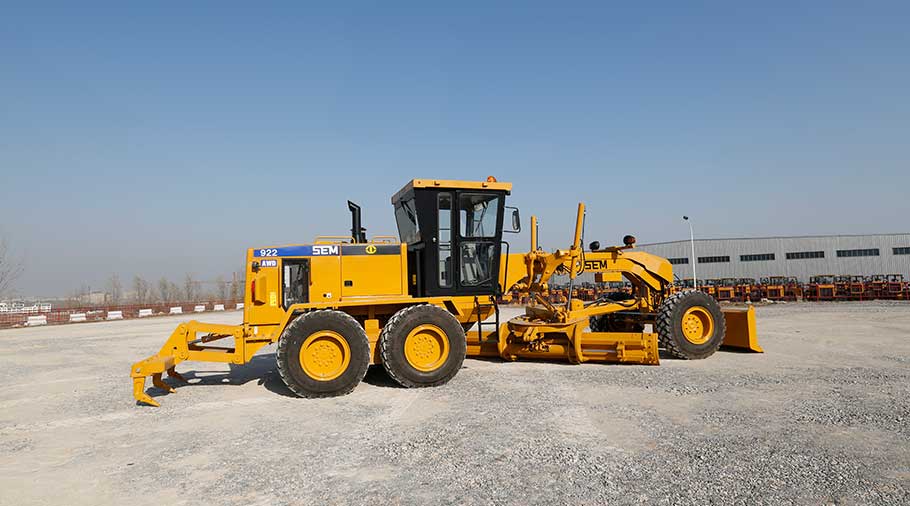

SEM922AWD Machine Styling (1)

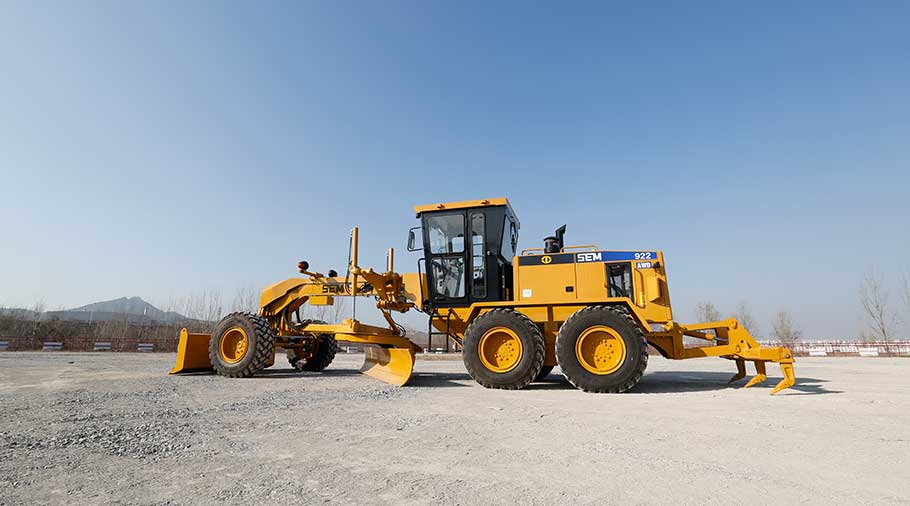

SEM922AWD Machine Styling (2)

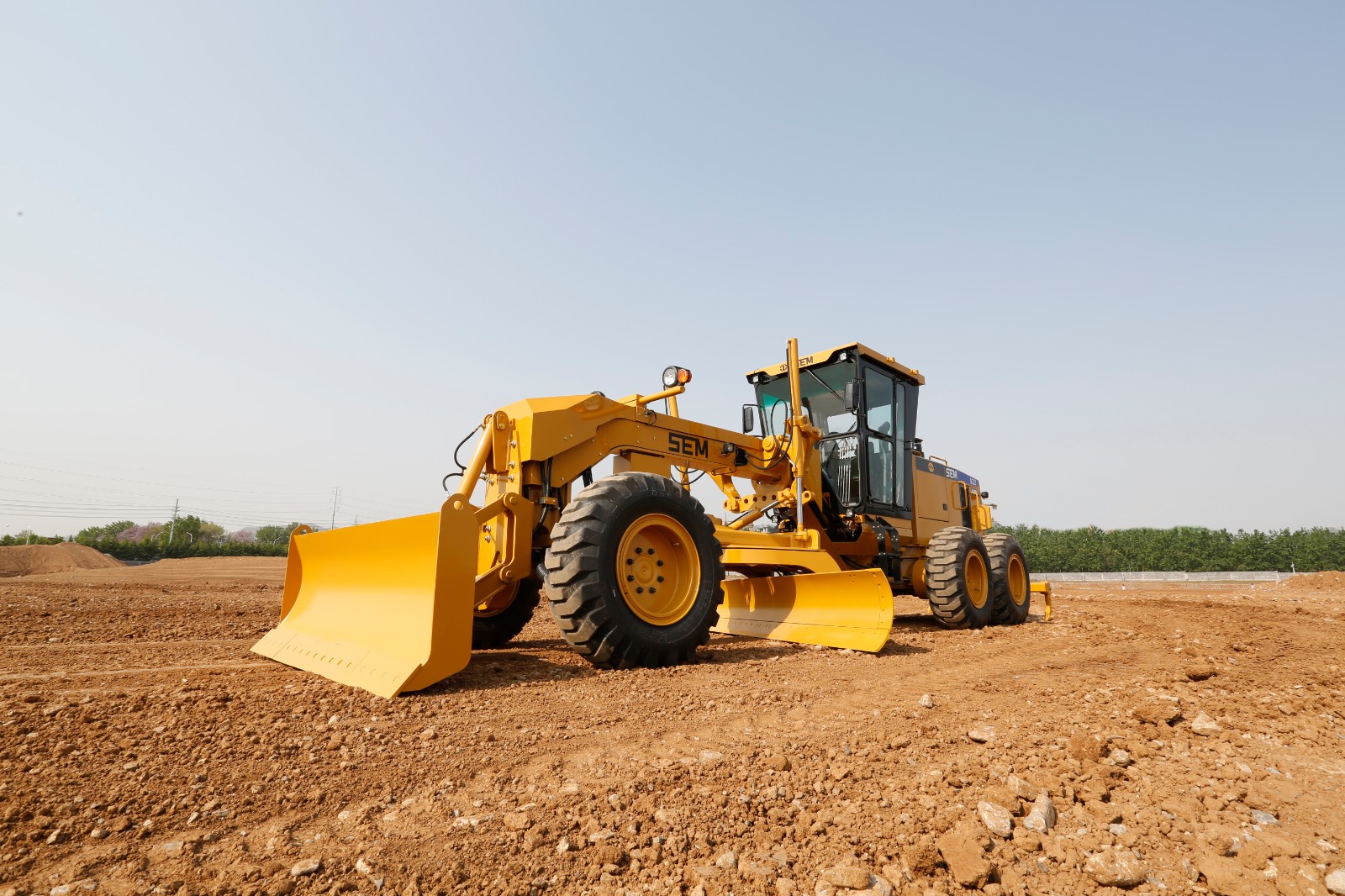

SEM922AWD Machine Styling (3)
