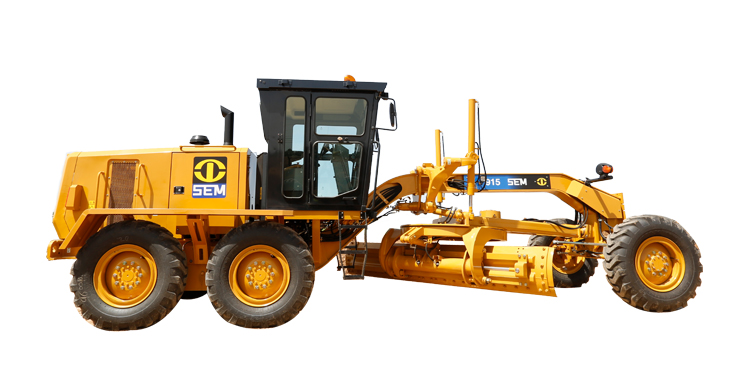

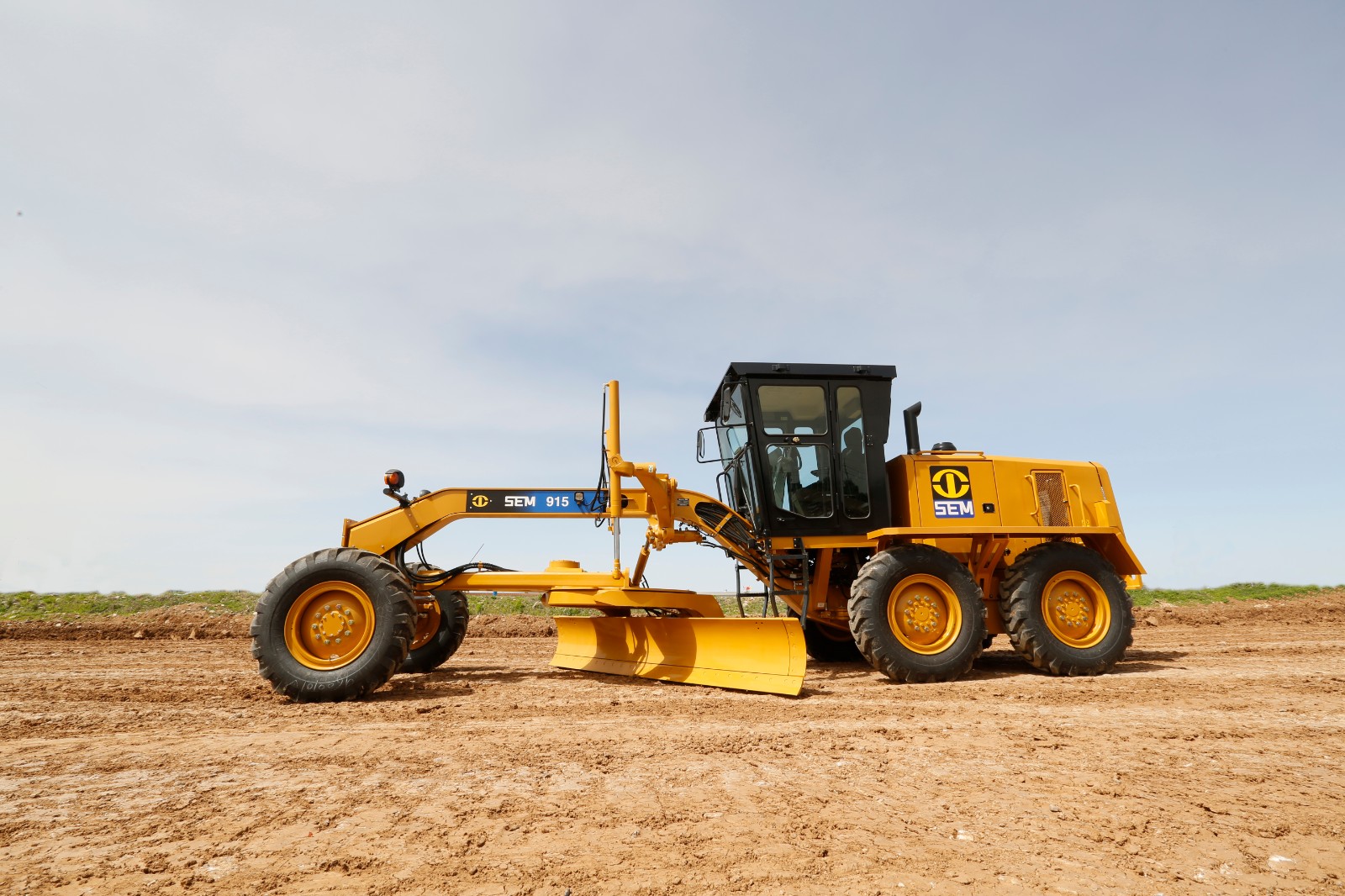

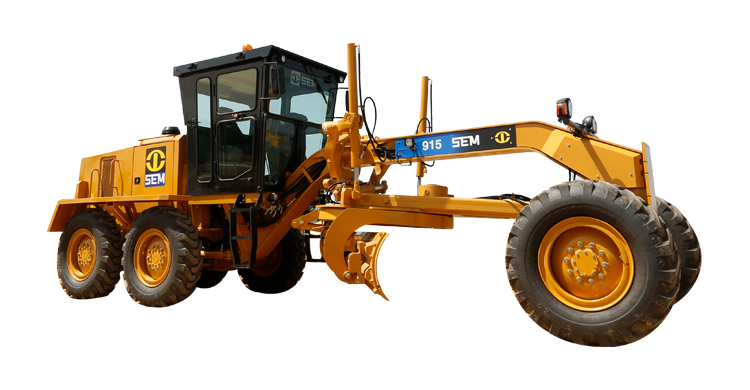

SEM915

  • Key Specification
  • Advantage
  • Application
    • Standard (Operating Weight) : 12,200kg
    • Min. Turning Radius : 7,300mm
    • Wheelbase : 5,830mm
    • Best-in-class Reliability and Durability
    • Highly Efficient
    • Outstanding Operator Comfort
    • Municipal Construction
    • Agriculture
    • Water Conservancy / Hydropower
    • Waste
    • Forestry
Inquiry Download Brochure
  • Feature
  • Specification
  • Video
  • Photo
  • Download Brochure

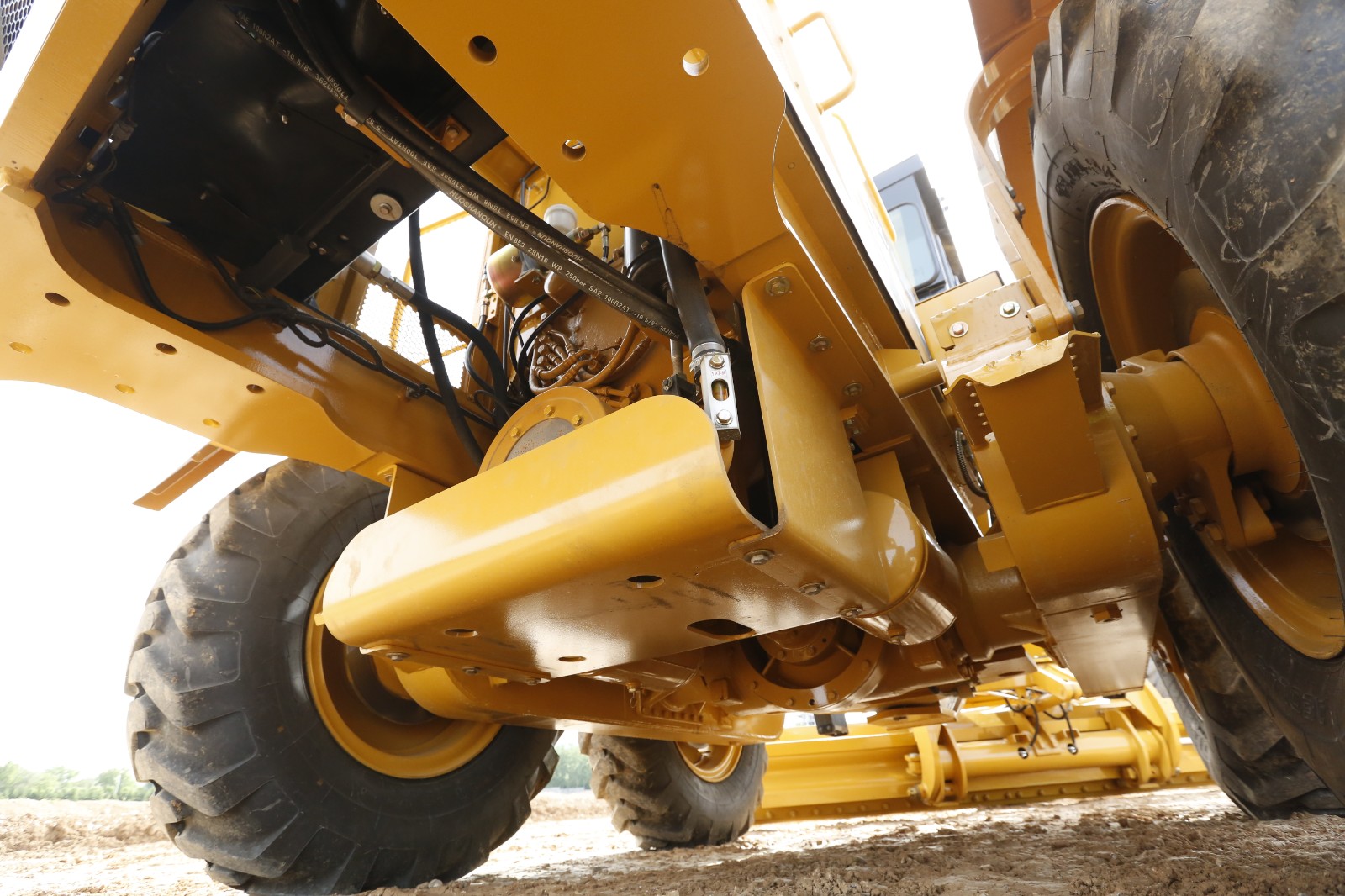

SEM Tandem Axle

  • Leveraging Caterpillar designing and experience on MG tandem axle
  • Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
  • Less down time and reduced labor and service cost for maintenance and repairing
  • Longer service interval for lubrication oil change
  • Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line

Control System

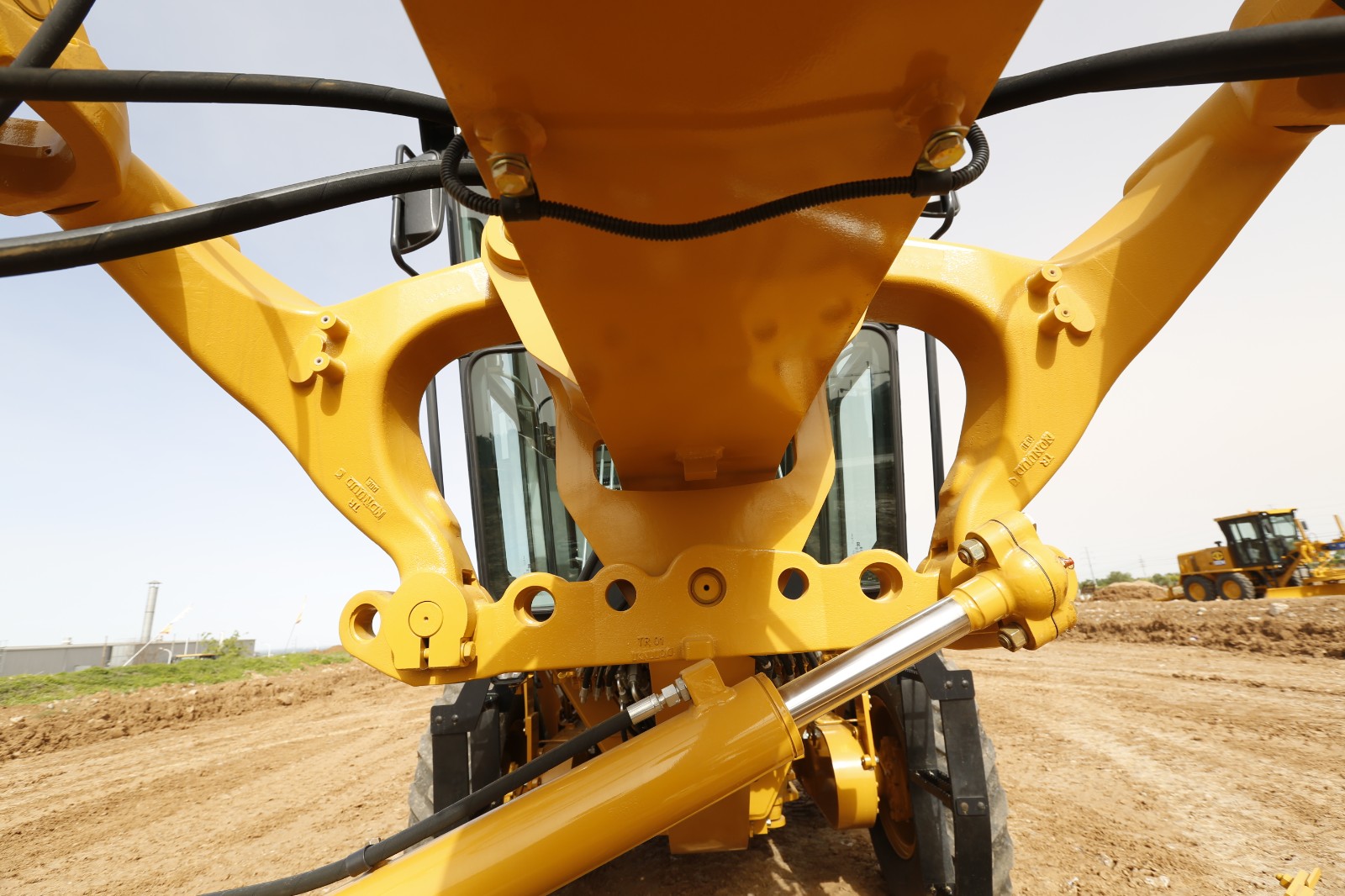

  • 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
  • Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
  • The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
  • Replaceable bushings reduce service time and cost

Blade Float

  • Standard blade float function allows blade to lower without hydraulic pressure for increased versatilityBlade float is engaged by pushing the left and right lift cylinder
  • Controls all the way forward past the detent
  • Provides protection for machine and pavement during snow removal and snow plowing

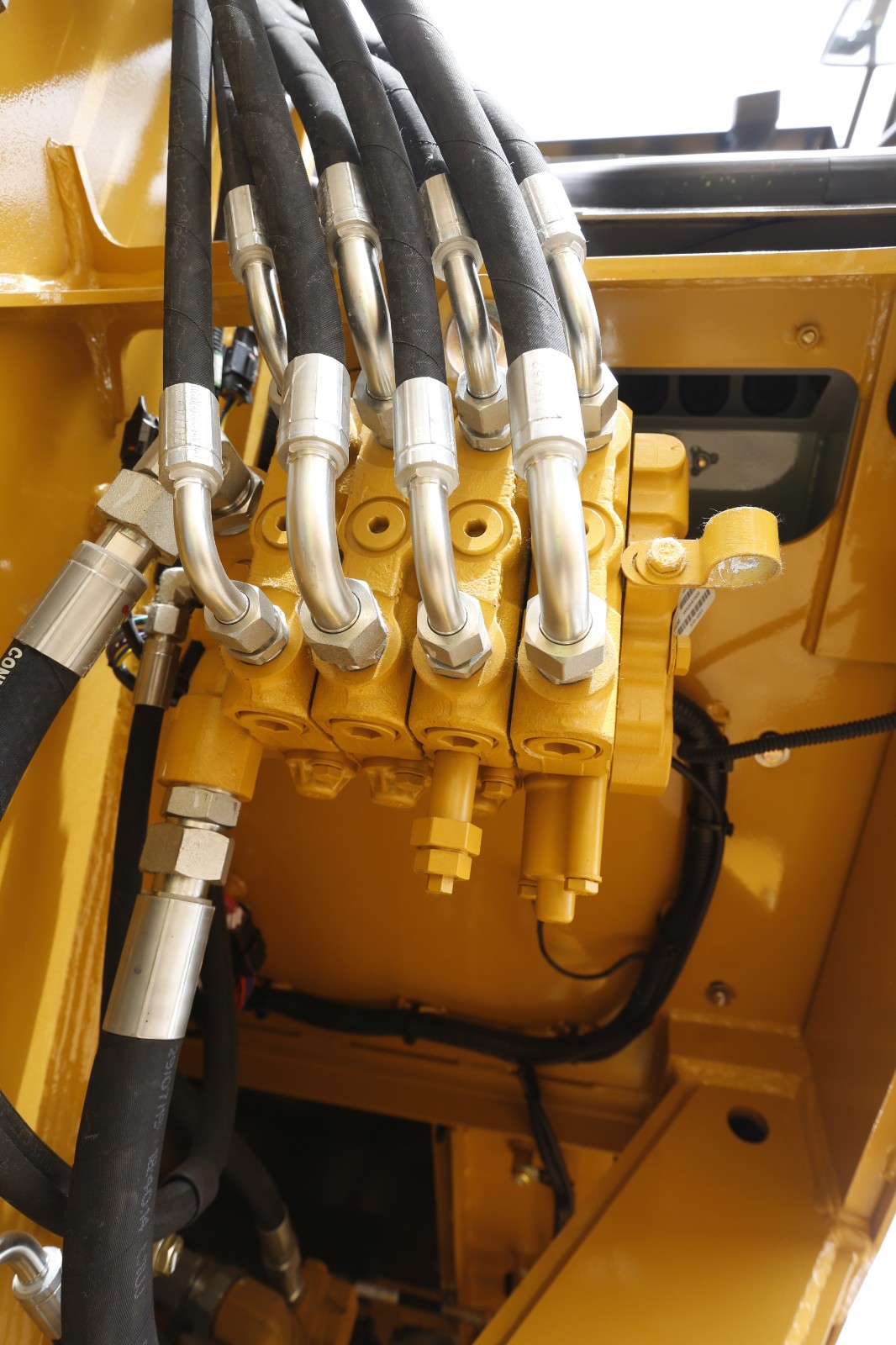

Hydraulic System

  • Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
  • World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
  • Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
  • Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

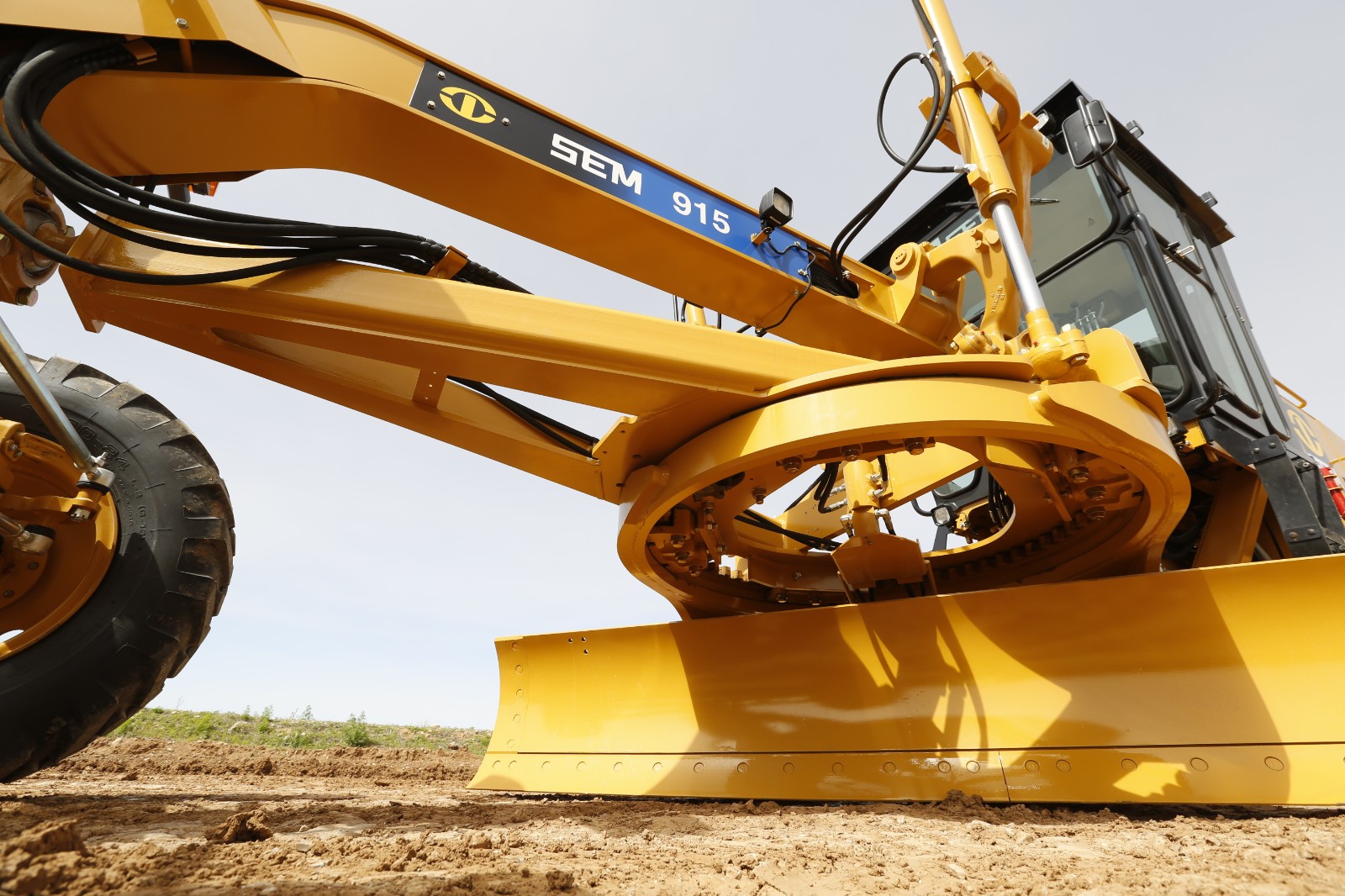

Drawbar

<!-- [if !supportLists]-->·       <!--[endif]-->A-frame tubular design drawbar provides maximum strength and durability

<!-- [if !supportLists]-->·       <!--[endif]-->Replaceable drawbar draft ball (bolted – not welded) for less service time and cost

<!-- [if !supportLists]-->·       <!--[endif]-->Easy removal of wear shims to adjust drawbar

Front Frame

<!-- [if !supportLists]-->·       <!--[endif]-->Flanged box section design removes welds from high stress areas, improving reliability and durability

<!-- [if !supportLists]-->·       <!--[endif]-->Continuous top and bottom plate construction provides consistency and strength, improving front frame durability

<!-- [if !supportLists]-->·       <!--[endif]-->Hydraulic hose routing minimizes exposure to damage and provides quick access for service

<!-- [if !supportLists]-->·       <!--[endif]-->Maintenance-free bushings improve durability and reduce overall service cost

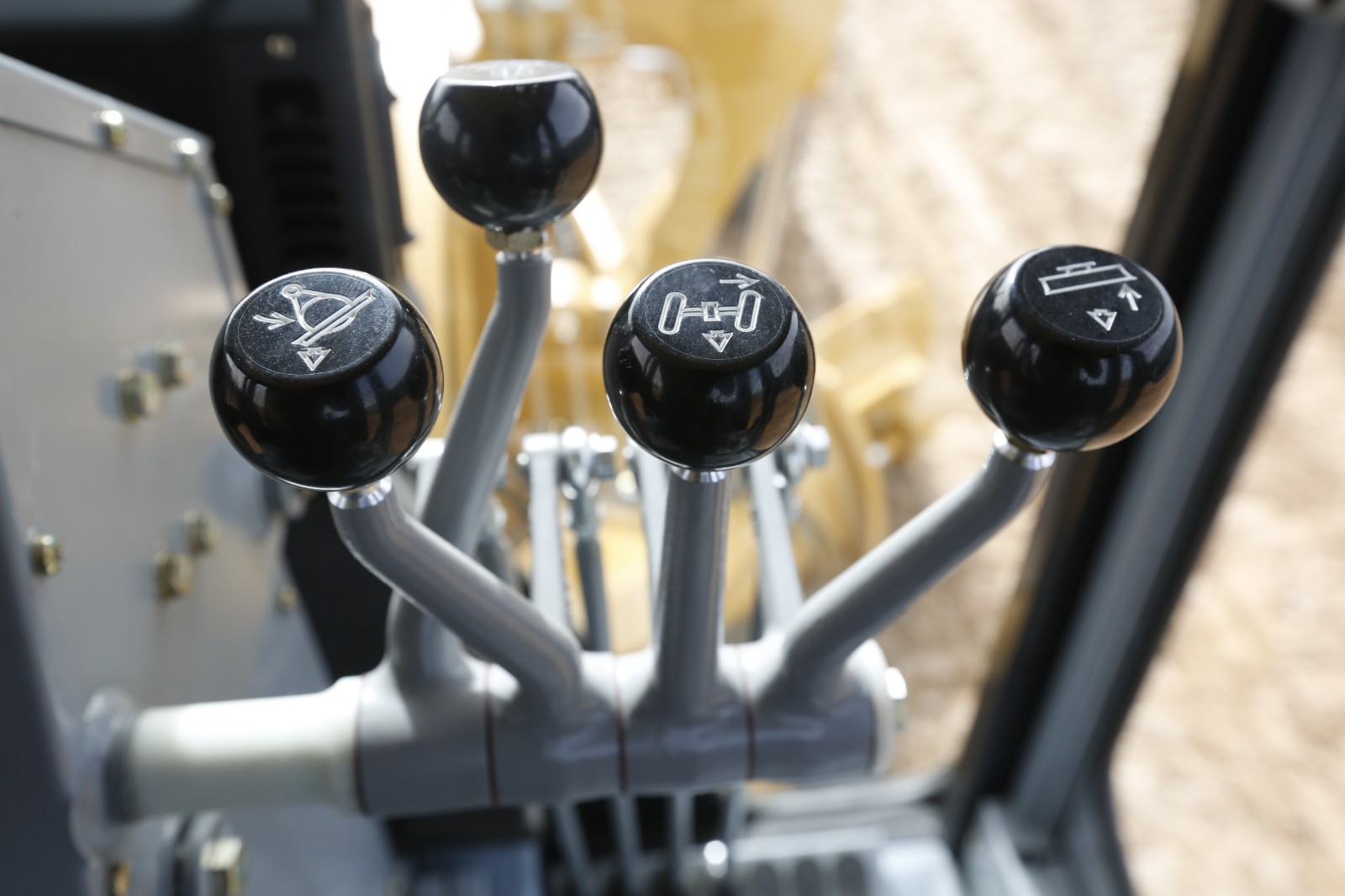

Control Layout

<!-- [if !supportLists]-->·       <!--[endif]-->Short throw levers are efficiently spaced, allowing ease of multi-function control

<!-- [if !supportLists]-->·       <!--[endif]-->Short lever travel (40mm) with low lever effort reduces operator fatigue

Cat ® Product Link™

<!-- [if !supportLists]-->·       <!--[endif]-->Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.

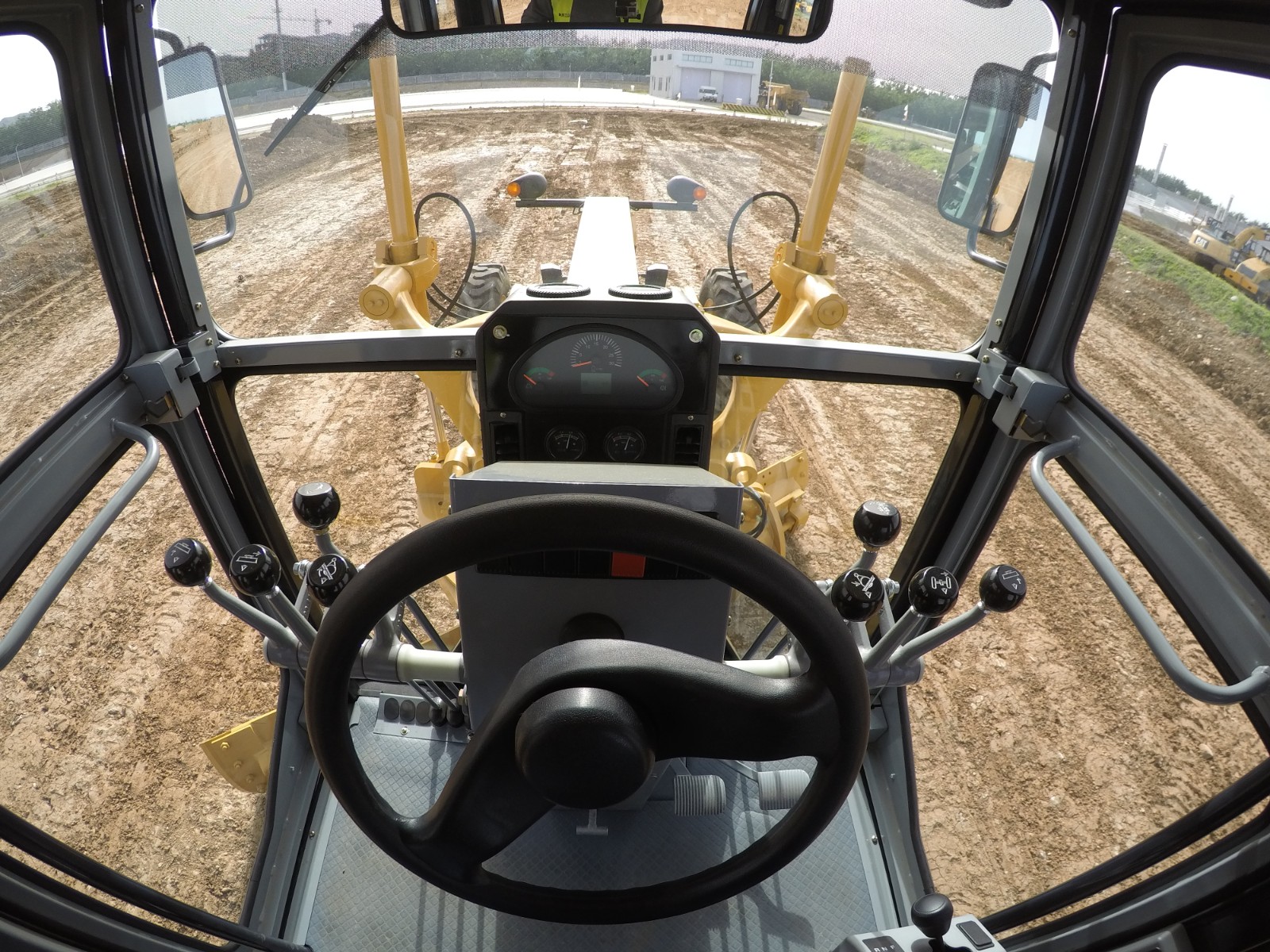

Large Cab

<!-- [if !supportLists]-->·       <!--[endif]-->High performance dashboard with 3 levels alarming monition system

<!-- [if !supportLists]-->·       <!--[endif]-->Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation

<!-- [if !supportLists]-->·       <!--[endif]-->Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort


ModelSEM915
Operating Weight
Standard12,200kg
Engine
Engine ManufacturerSDEC (ShangHai Diesel)
Engine ModelSC7H150G2B
Rated Power110 @ 2,200kW @ RPM
EmissionTier 2

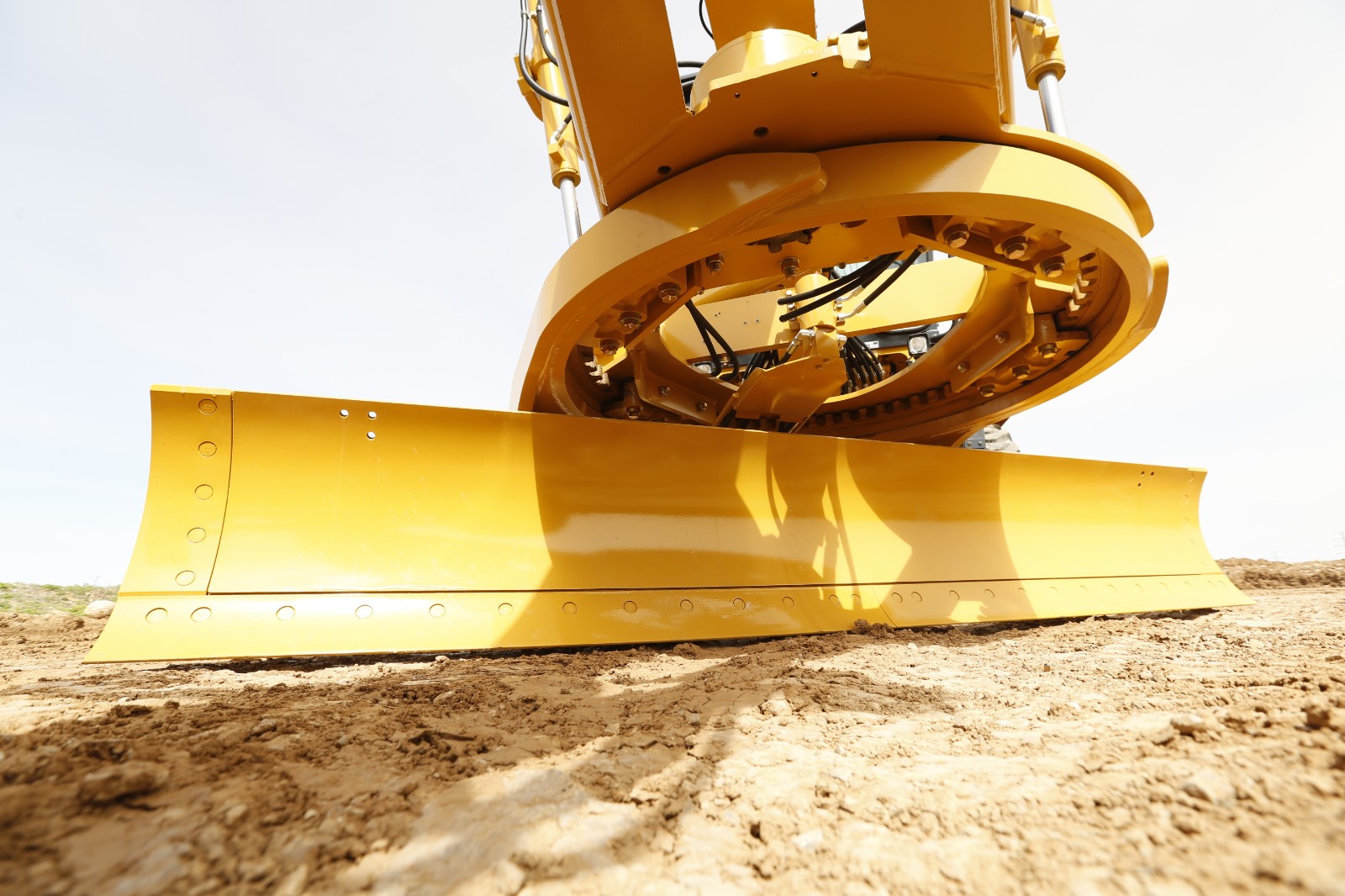

Moldboard
Blade Width, Standard3,059(10')mm(Ft)
Main Optional Equipments
Mid Mounted Scarifier(MMS) / MMS ReadyCircle Drive with Slip Clutch
MG Maintenance
SEM_PRODUCTS_SEM618D

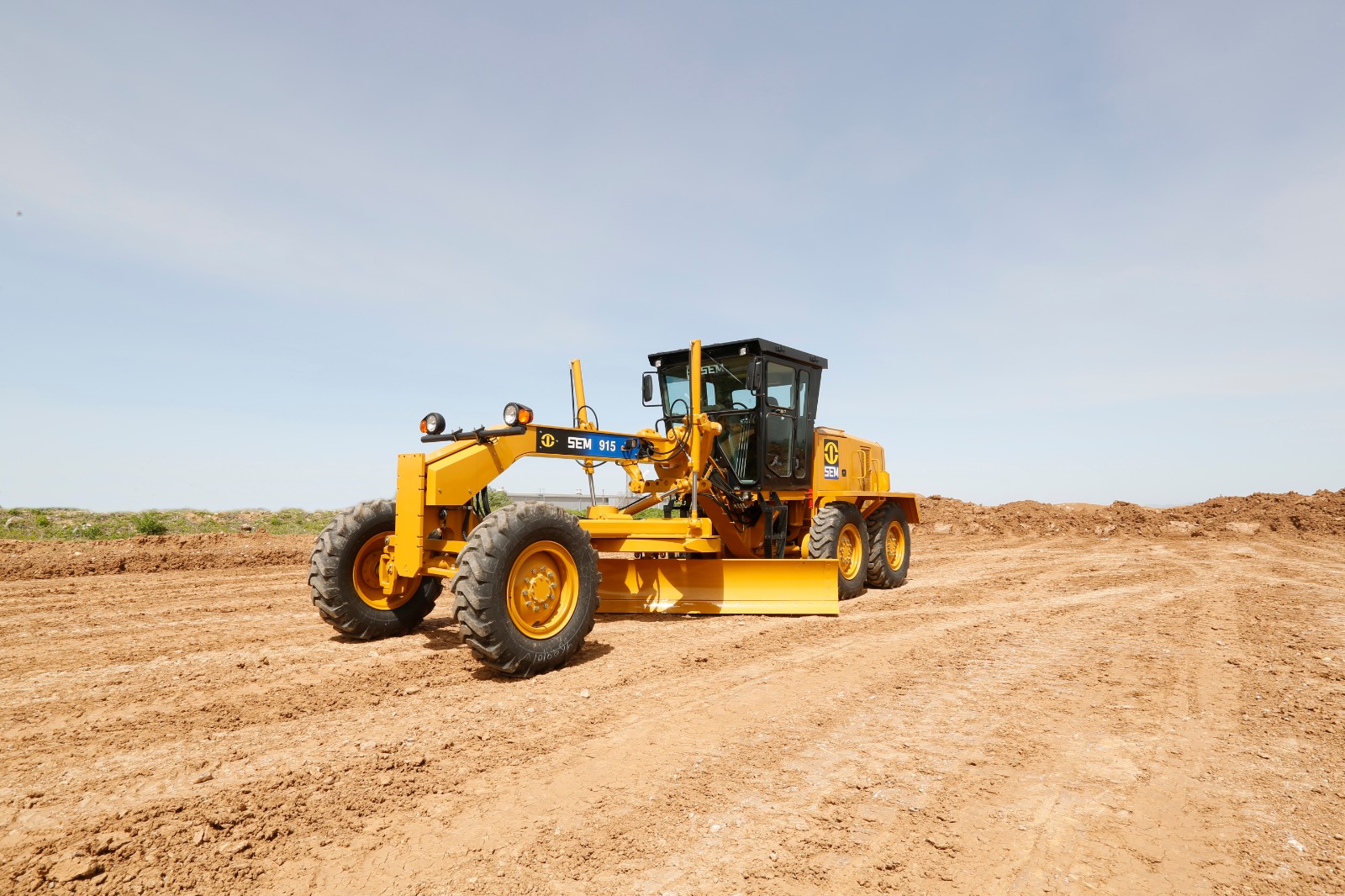

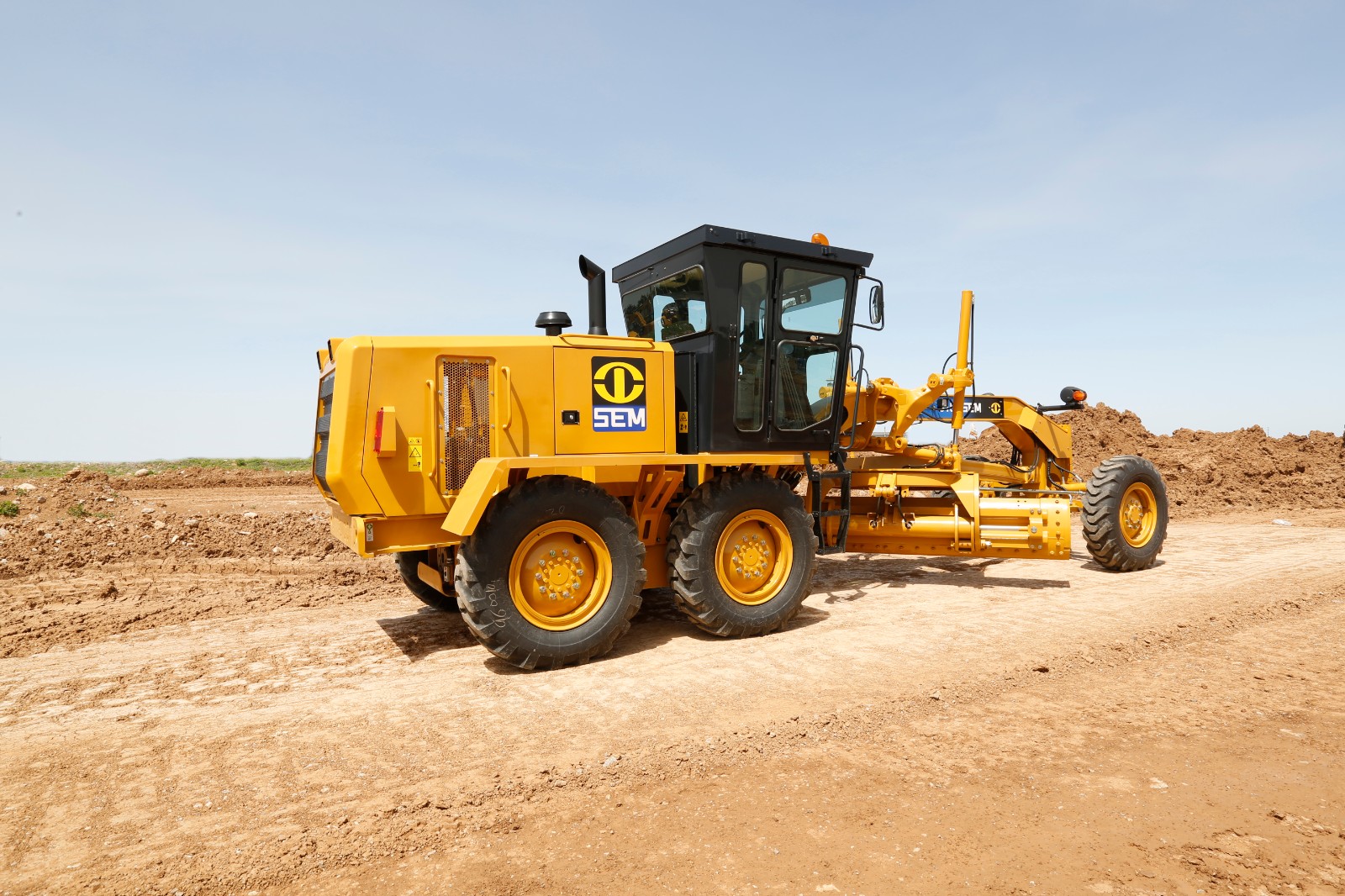

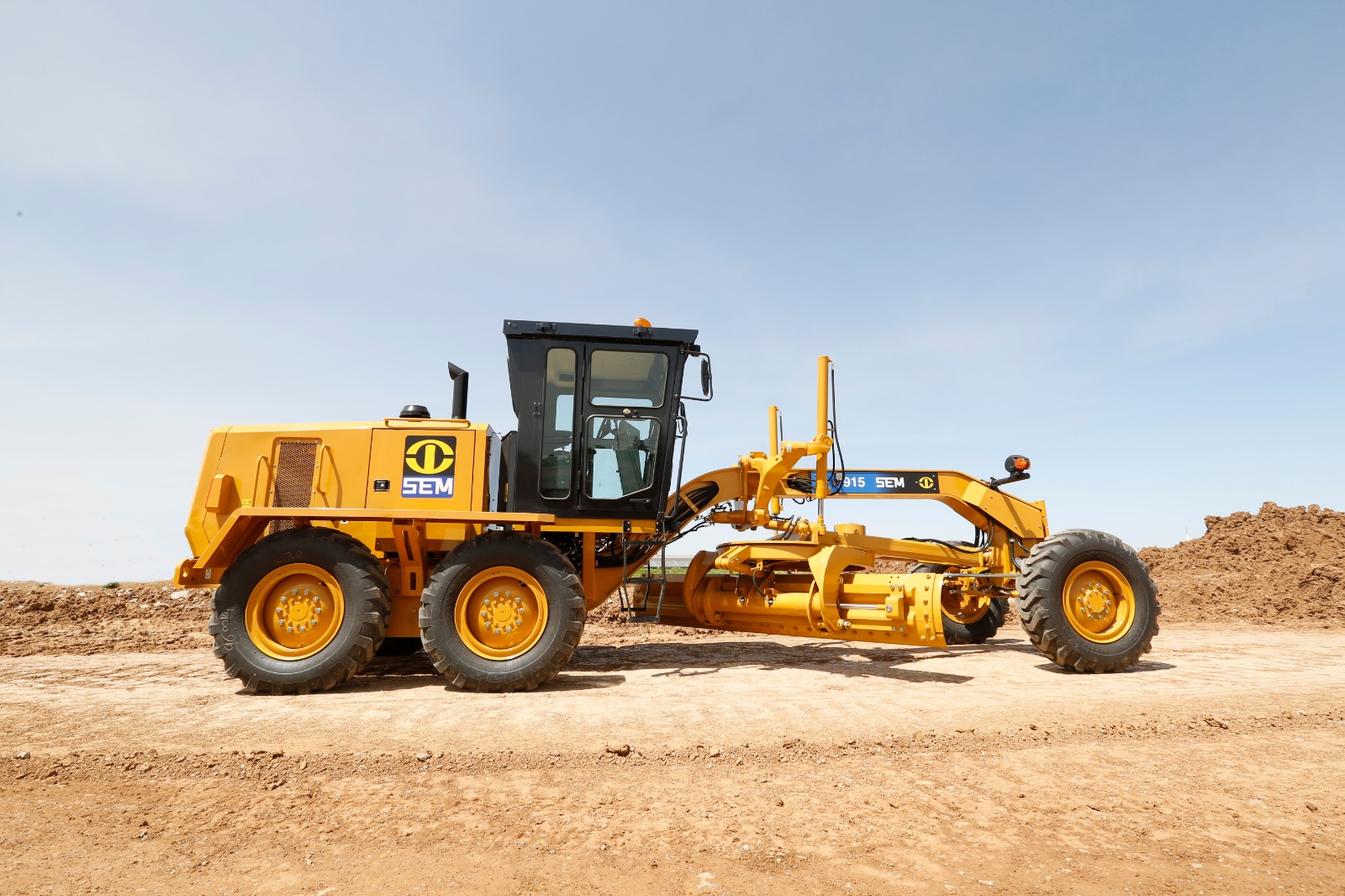

SEM915 Machine Styling (1)

SEM_PRODUCTS_SEM618D

SEM915 Machine Styling (2)

SEM_PRODUCTS_SEM618D

SEM915 Machine Styling (3)

SEM_PRODUCTS_SEM618D

SEM915 Machine Styling (4)

SEM_PRODUCTS_SEM618D

SEM915 Machine Styling (5)
