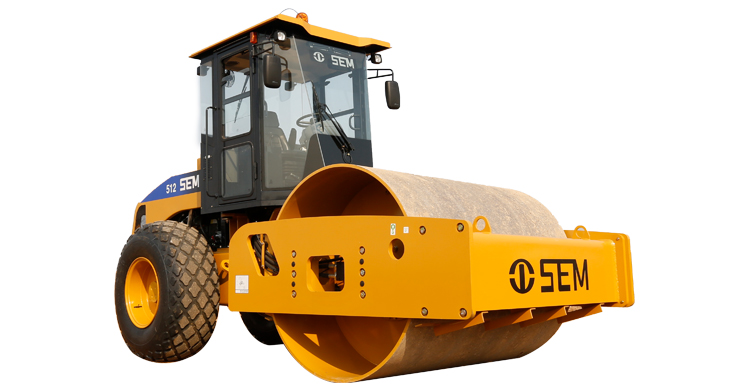

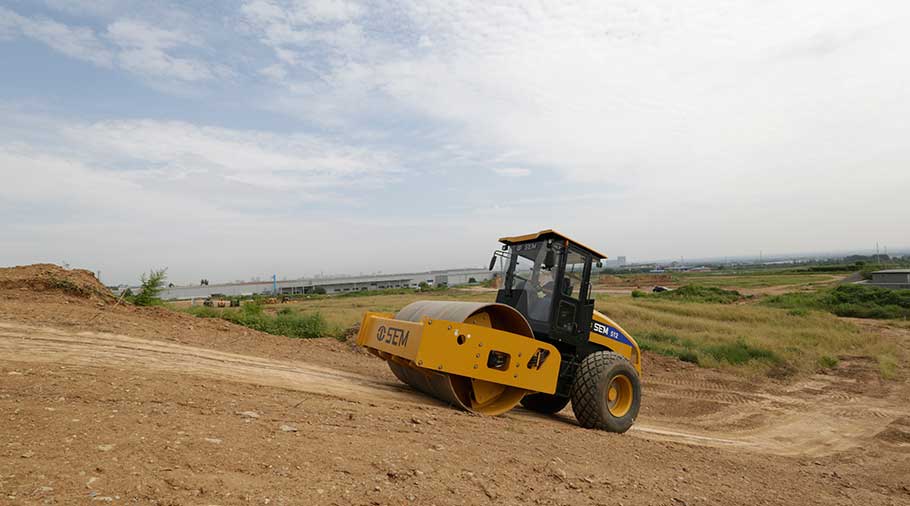

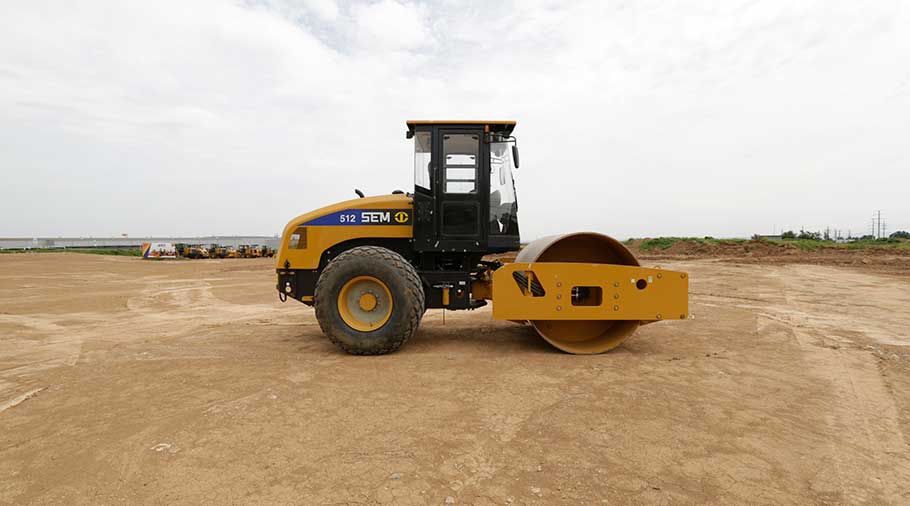

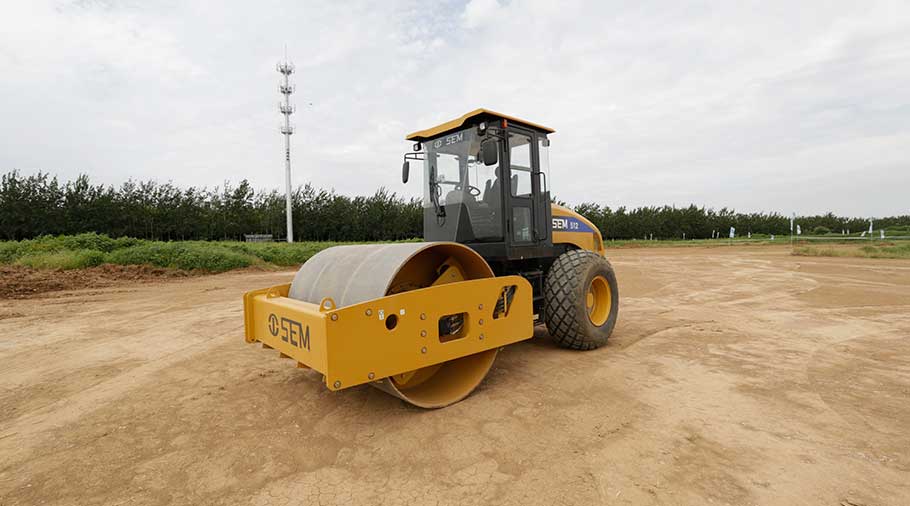

SEM512

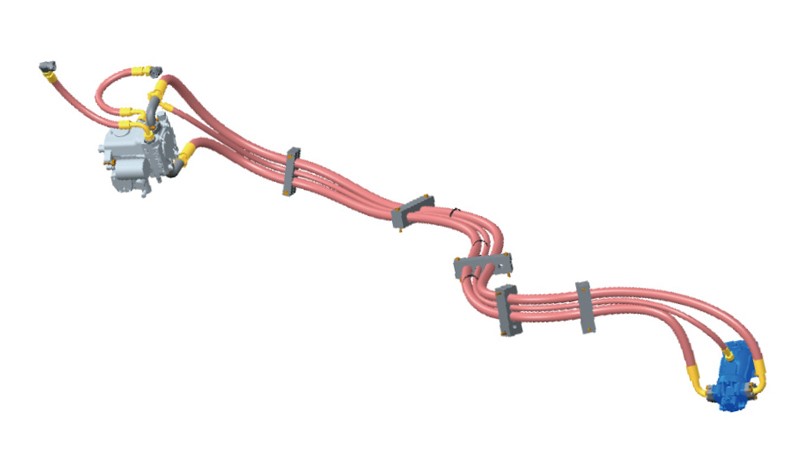

Load sensing vibration hydraulic, propel system reduce system heat and fuel consumption
Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
Optimized travel speed with the vibration frequency
Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability

Model
Model	SEM512
Engine Specification
Emission	China StageII
Std Rated Power-Gross	97.5kW
Rated Speed	2,200r/min
Composite Work Cycle Fuel Consumption (l/hour)	100% of XS122
Ambient Capability-HA Sea Level	49Deg C
Ambient Capability-Cold Weather	-10Deg C
Peak Torque/Speed - Gross	560/1,400-1,600N.m/rpm
Sound Level-Spectator	112dB(A)
Sound Level-Operator Position with Cab	86dB(A)
Compaction	100% of XS122
Operating Specifications
Machine Mass w/Std Config	12,000 kg Canopy /12,170 kg Cabin / 12,380 kg (Cabin with ROPS) ±3%
Weight at Drum w/Std Config	6,900±3%kg
Weight on Rear Axle	5,100kg
Static Linear Load	310N/cm
Max. Grade Ability w/o vibbration	45%
Articulated Angle	33±1°
Turning Radius Inside Drum Edge	5,990mm
Compaction Width	2,130mm
Ground Clearance	442mm
Travel Speed
Lo Range	0 to 5.5km/h
Hi Range	0 to 12km/h
Hydraulic Cycle Time
Full Turn Time	6±0.5s

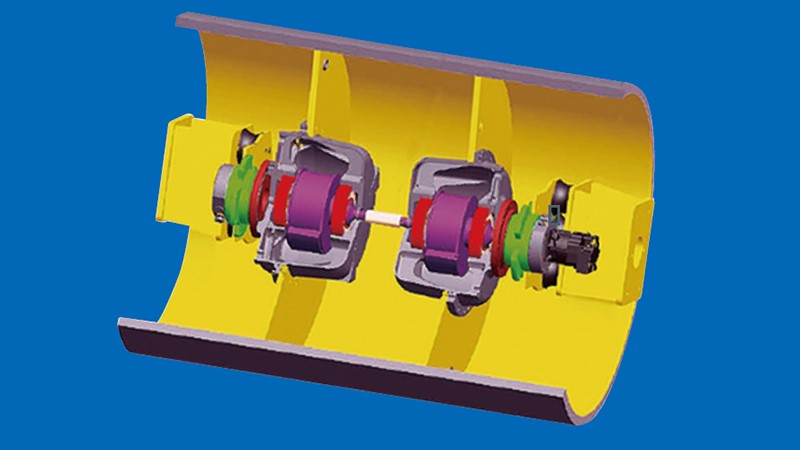

Vibratory System
Freqency-Hi/Lo	33HZ/30HZ
Amplitude-Hi/Lo	1.80mm/0.90mm
Centrifugal Force-Hi/Lo	245kN/150kN
Dimensions
Machine Dimensions[LWH]	5,8152,2903130mm
Oscillation Angle	10±1°
Wheelbase	2,900mm
Tread Width	1,600mm
Drum Width	2,130mm
Drum Diameter	1,600mm
Tire Specs
Tire Specs	23.1-26 12PR12
Tire Pressure Setting	0.35Mpa
注释：产品参数可能因不同国家规定或配置有所不同，以上信息仅供参考，详细信息请联系当地经销商。
