SEM510

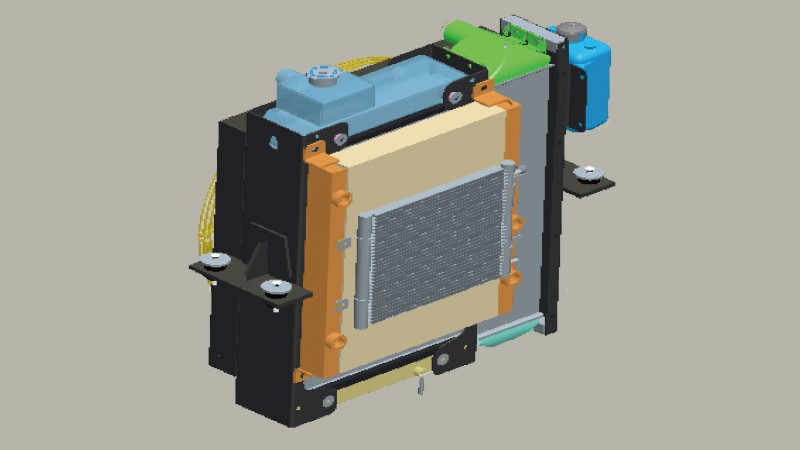

Propel system reduce system heat and fuel consumption

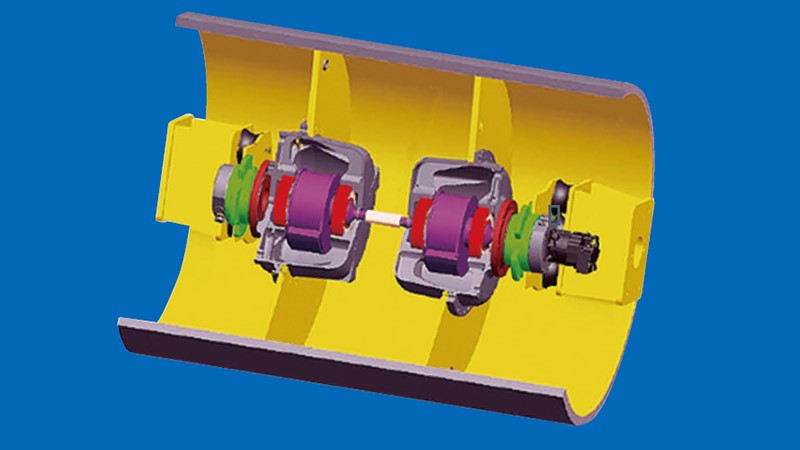

Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
Optimized travel speed with the vibration frequency
Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability

Model
Model	SEM510
Engine Specification
Std Rated Power-Gross	97.5kW
Ambient Capability-HA Sea Level	49Deg C
Ambient Capability-Cold Weather	-10Deg C
Operating Specifications
Machine Mass w/Std Config	10,000 kg Canopy / 10,170 kg Cabin / 10,380 kg (Cabin with ROPS) ±3%
Weight at Drum w/Std Config	5,900+3%kg
Weight on Rear Axle	4,100kg
Static Linear Load	271N/cm
Max. Grade Ability w/o vibbration	45%
Articulated Angle	33±1°
Turning Radius Inside Drum Edge	5,990mm
Compaction Width	2,130mm
Travel Speed
Lo Range	0 to 5.5km/h
Hi Range	0 to 12km/h
Hydraulic Cycle Time
Full Turn Time	6±0.5s
Vibratory System
Freqency-Hi/Lo	33/30HZ
Centrifugal Force-Hi/Lo	130/215kN
Dimensions
Machine Dimensions[LWH]	5,8152,2903,130mm
Oscillation Angle	10±1°
Wheelbase	2,900mm
Tread Width	1,600mm
Drum Width	2,130mm
Drum Diameter	1,590mm
注释：产品参数可能因不同国家规定或配置有所不同，以上信息仅供参考，详细信息请联系当地经销商。

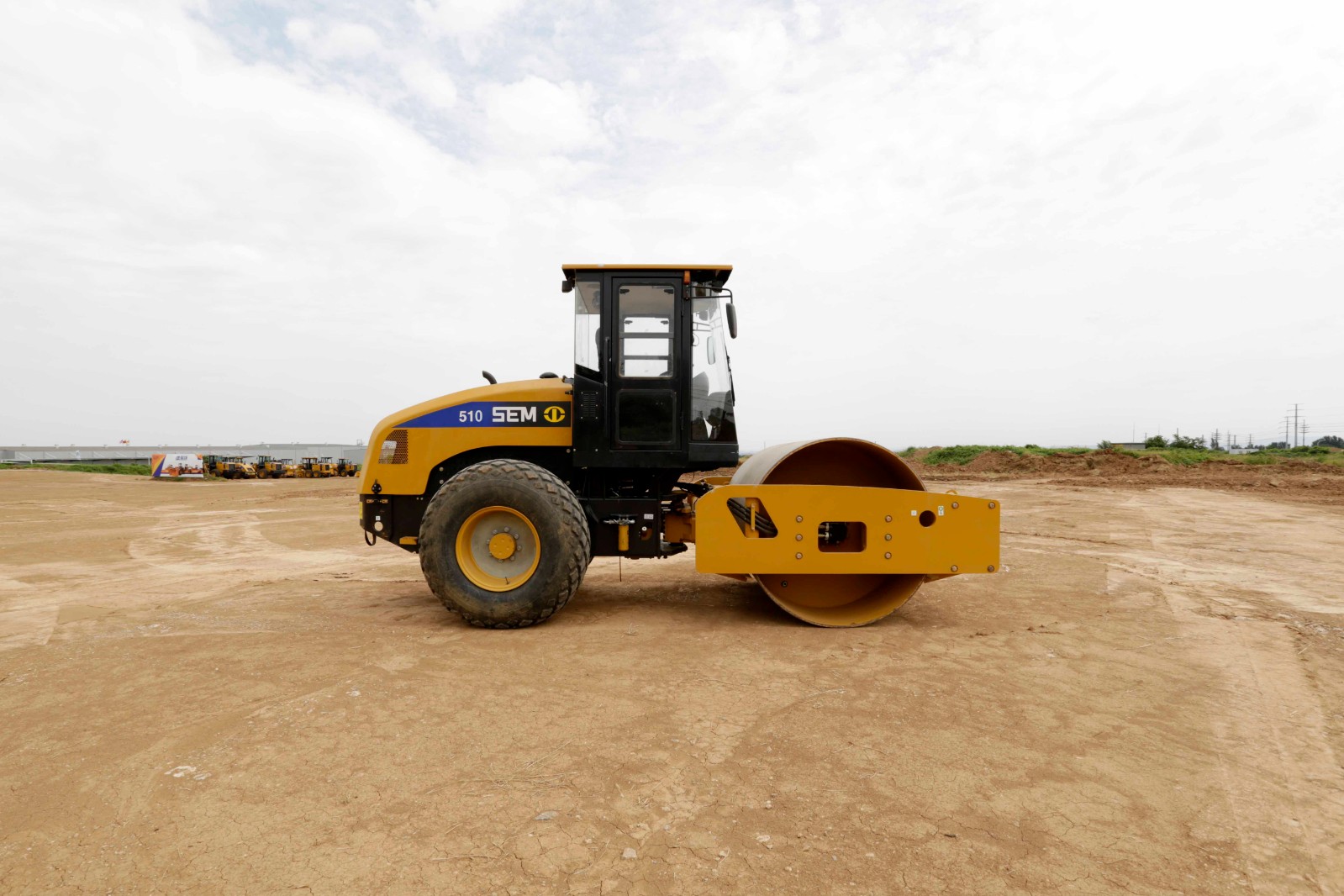

SEM510_1
